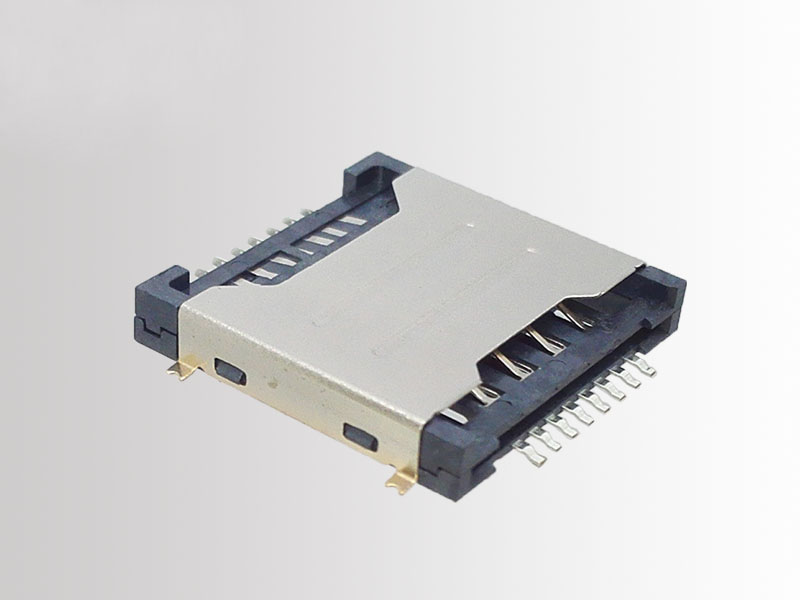

Double SIM Card Connector,PUSH PULL,H3.0mm

Material:
Housing:Hi-Temperature Plastic,UL94V-0.Black.
Terminal:Copper Alloy.Gold Flash Plated On All Terminal,AND 50u” Min Nickel Underplated On Allover.
Shell:Stainless Steel.50u” Nickel Underplated On Allover,Gold Flash On Solder PAD.
Electrical:
Current Rating:0.5 A.
Voltage Rating:5.0 vrms.
Insulation Resistance:1000MΩ Min.At DC500V DC.
Withstanding Voltage:250V AC RMS For 1 Minute.
Contact Resistance:100mΩ Max.At 10mA/20mV max.
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC
