double row 6 pin pogo pin connector

  • Model: KLS1-6PGC01B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

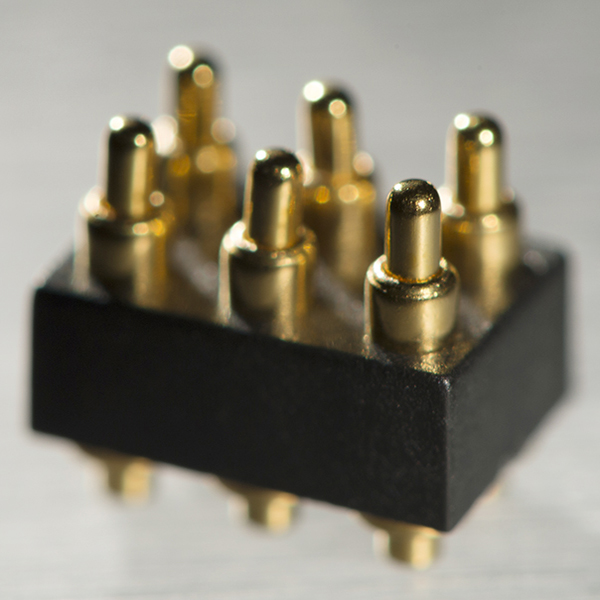

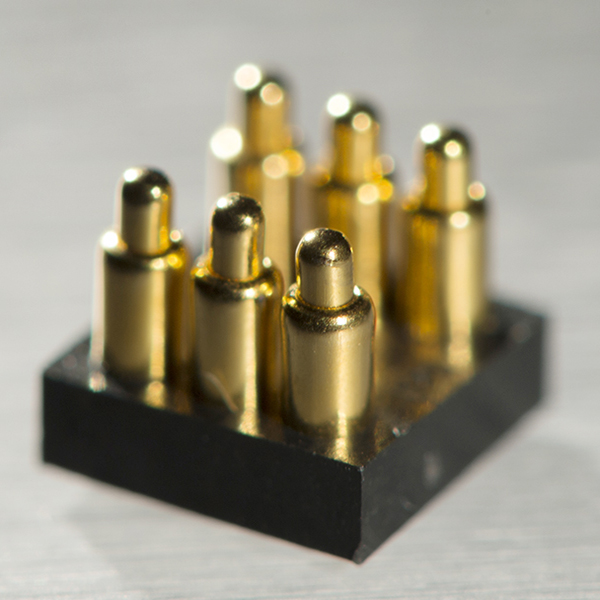

double row 6 pin pogo pin connector

Housing: PPA, PA46, PA9T, LCP

Pogo Pin OEM

Plastic Size(mm) Pogo Pin Size(mm)
L W H Pitch Cap Positioner A B C D E F Number of Pin

PACK:
Bulk: aluminum foil bag.

Reel: diameter Φ330mm; carrier tape width: 12, 16, 24, 32, 44mm.

=================================================================================
product testing introduction

Electrical performance
1 Contact impedance 30 mohm Max at working stroke Top-Link factory testing standard*
2 Insulation Resistance 500 Mohm Min EIA-364-21
3 Dielectric Withstanding Voltage No flash-over,air discharge,breakdown or leakage EIA-364-20
4 Temperature Rise vs Current Rating 30 °C Max.
temperature rise at specified current
EIA-364-70
Mechanical performance
1 Spring force refer to product drawing EIA-364-04
2 Retention Force 0.5Kgf(4.5N)Min. EIA-364-29
3 Durability 10,000 cycles Min.
No physical damage Resistance after test 30 mohm Max.
EIA-364-09
4 Vibration No physical damage,No electrical discontinuity more than 1i second. EIA-364-28
5 Mechanical Shock No physical damage,No electrical discontinuity more than 1i second. EIA-364-27 method A
Environmental
1 Solderability solder coverage area Min.95% EIA-364-52
2 Salt Spray Corrosion No physical damage. Resistance after test 100 mohm Max. EIA-364-26 condition B
3 Resistance to Solder heat(IR/convection) No cracks,chips,melting,orblister EIA-364-56
4 Humidity No physical damage, Resistance after test 100 mohm Max. EIA-364-31,method ii,condition A
5 Thermal Shock No physical damage, Resistance after test 100 mohm Max. EIA-364-32,method ii
6 Temperature Life No physical damage, Resistance after test 100 mohm Max. EIA-364-17,condition A,condition 4
Environmental
1 peel force 10-130 gf EIA-481
2 Drop Test Refer to drop test Standard of Molex
