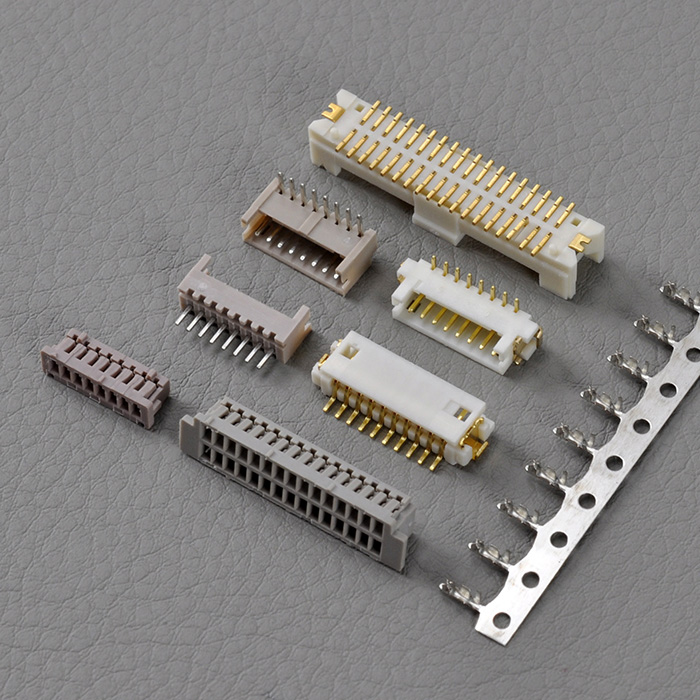

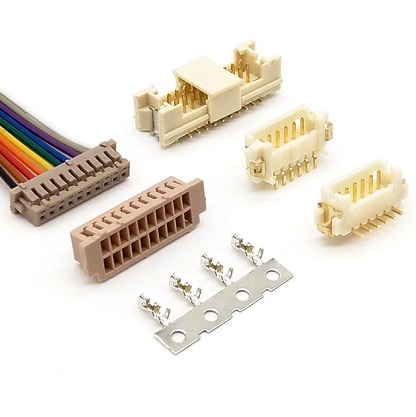

Double row 1.25mm Pitch HRS DF13 type wire to board connector

Order information:
KLS1-XL4-1.25-2-XX-H
Pitch:1.25mm
2-Double layer
XX-No.of 10~50 pins
H HA-Housing  T-Terminal    VM-Vertical SMT Pin

Specifications
◆Material: PA66/PA6T UL 94V0 (Lead Free)
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:150V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:30mΩ Max.

KLS1-XL4-1.25-2.pdf
