Double layer D-Sub Connector ,DR 2 Row Right Angle

  • Model: KLS1-115
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

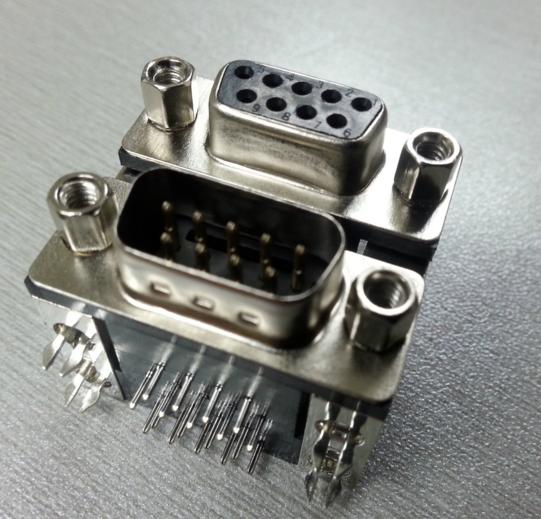

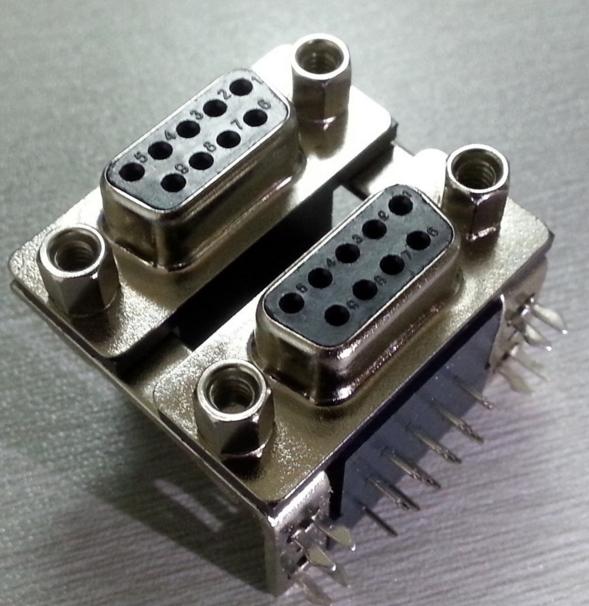

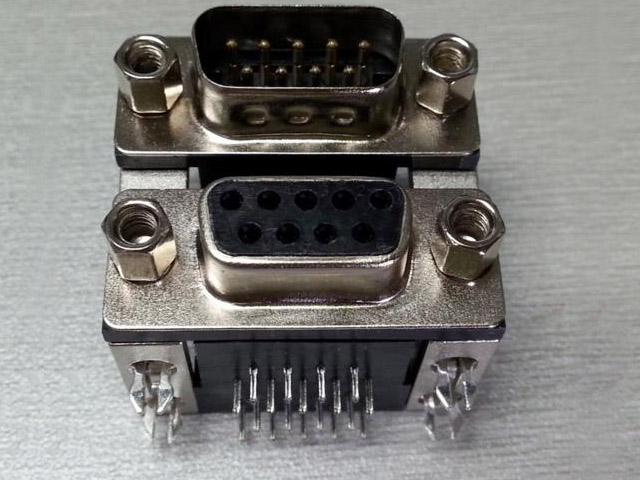

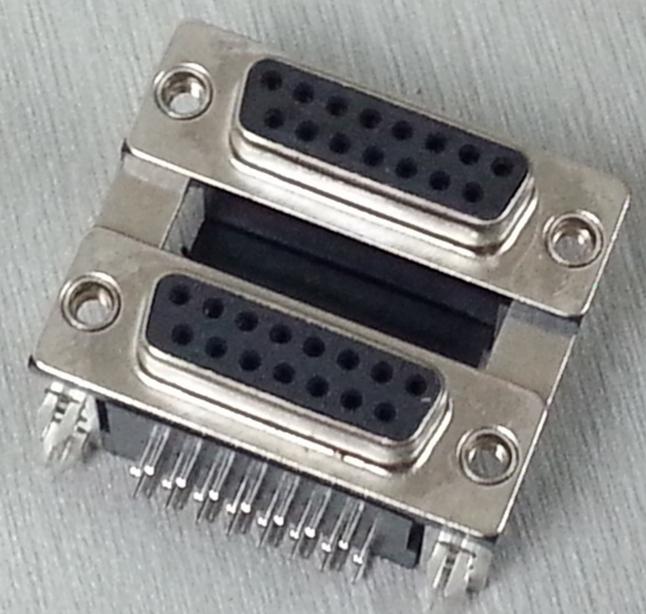

Double layer D-Sub Connector ,DR 2 Row Right Angle

Order Information:
KLS1-115-09-F-M-A-B-B
No.of pin:09P/09P, 09P/15P, 09P/25P, 15P/15P,15P/25P,25P/25P,37P/37P
UP Contact: F-Female   M-Male
Down Contact:M-Male F-Female
H Size: A=15.88mm  B=19.02mm
Process Option: A-Rivet only  B-Rivet lock
Color:  B-Black

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating

Electrical Characteristics:
Current Rating:            1 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
