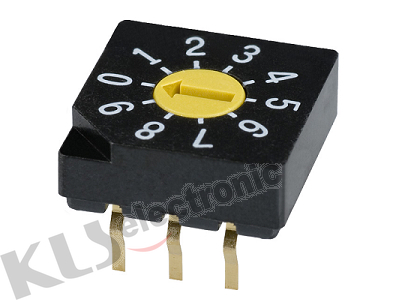

Dip Rotary Code Switch

KLS7-RS21000 / KLS7-RS31000 / KLS7-RS41000
ELECTRICAL:
Switching Rating: 25mA 24V DC
Non-Switching Rating: 100mA 50V DC

Operation Force: 400gf

Dielectric Strength: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim
Contact Resistance: 100MΩ Max.

Operating Temperature: -25oC ~ +80oC

Electrical Life: 20,000 Cycles

KLS7-RS31000.pdf
