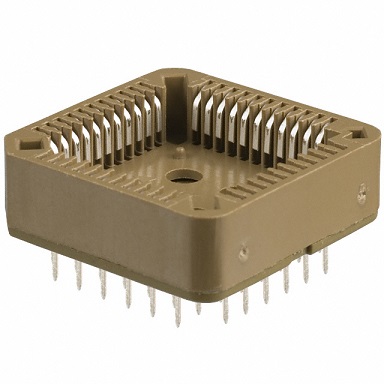

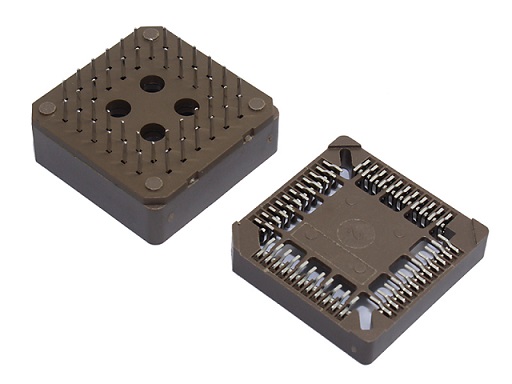

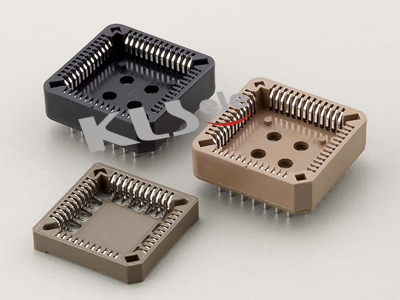

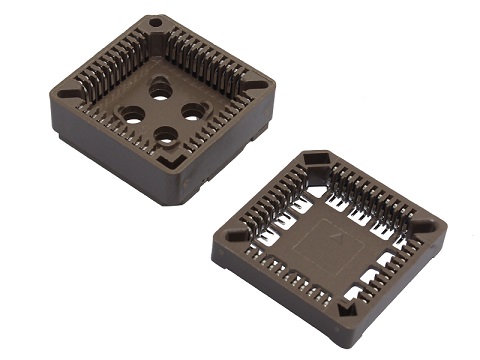

1.27mm Pitch PLCC Socket Connector

Order Information
KLS1-210-D-XX-A
D=DIP  S=SMT
XX-No.of 20~84pins
Color: A=Brown  B=Black

Material:
Housing: PPS UL94V-0
Contacts: Phosphor Bronze
Plating: Tin plated 120u” over 80u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Dielectric Withstand Voltage:1000V AC
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max
Operating Temperature: -40ºC~+110ºC
