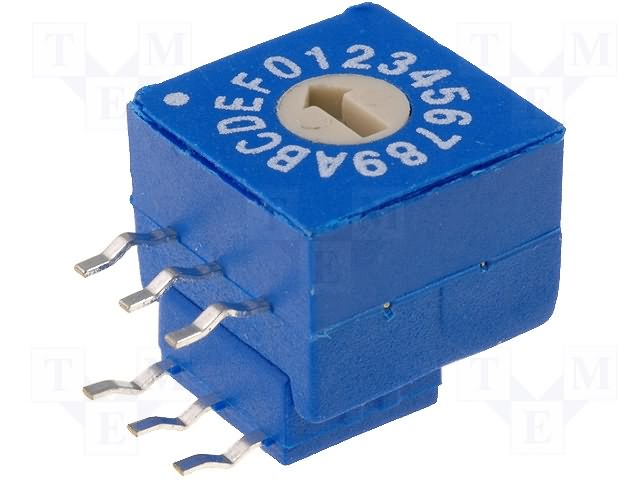

Dip Rotary Code Switch

KLS7-RR21600 / KLS7-RR31600 / KLS7-RR41600
KLS7-RR21607 / KLS7-RR31607 / KLS7-RR41607

ELECTRICAL:
Switching Rating: 25mA 24V DC
Non-Switching Rating: 100mA  50V DC
Operation Force: 400gf
Dielectric Strength: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim
Contact Resistance: 100MΩ Max.
Operating Temperature: -25oC ~ +80oC
Electrical Life: 20,000 Cycles
