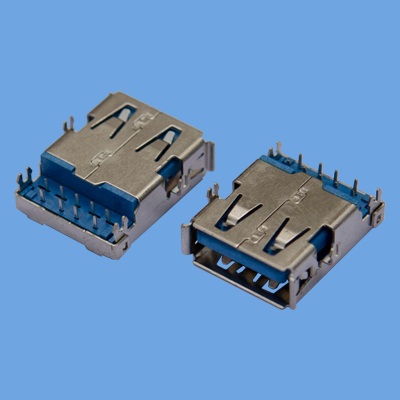

Dip 90 MID mount H3.18mm A Female USB 3.0 connector

  • Model: KLS1-314
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Electrical
Contact Current Rating:1.5 A For
Pin1&Pin4 0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
10mΩ Max Change For Post Test Llcr
Insulation Resistance:1000mΩ Min

Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
