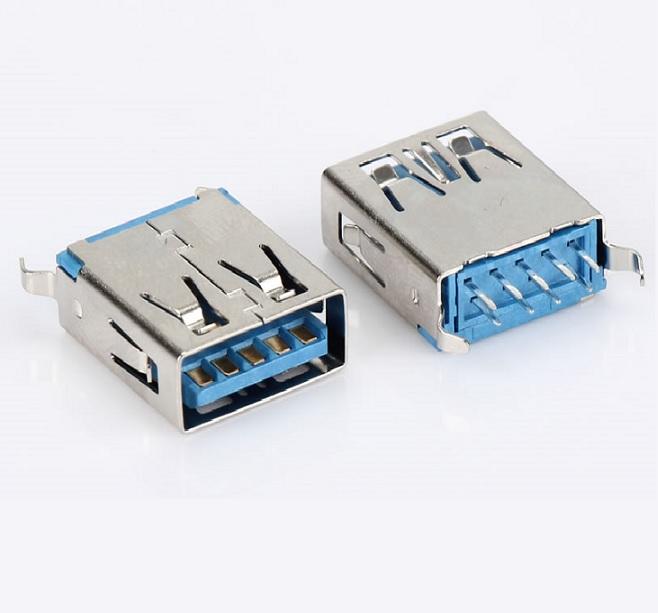

Dip 180 A Female 9P USB 3.0 Connectors

  • Model: KLS1-3018
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical
Voltage Current Rating:2AMP,30V AC
Insulator Resistance: 100MΩ Min
Contact Resistance: 50mΩ Max
Withstanding Voltage: 300V AC

Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
