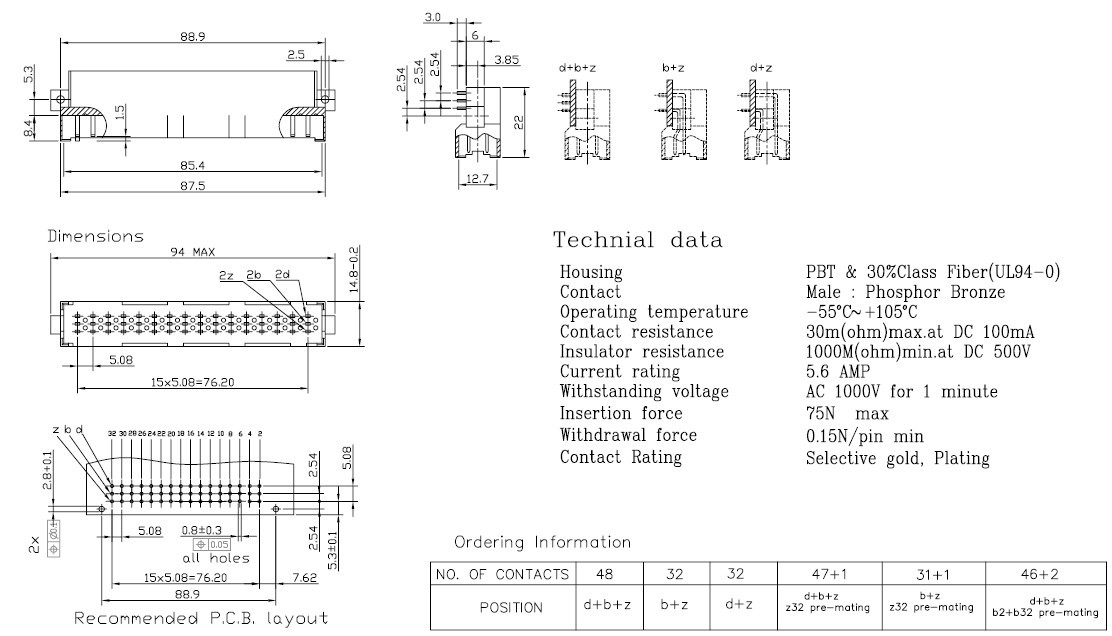

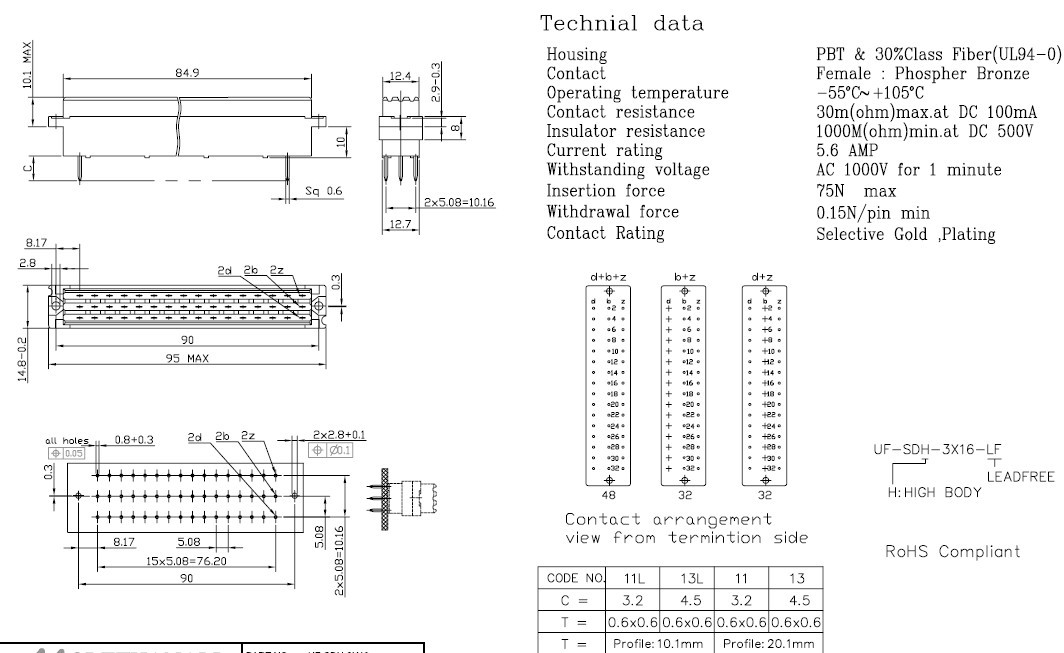

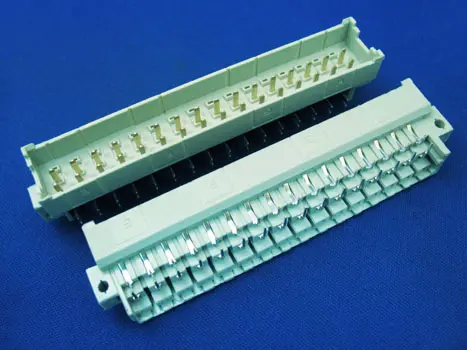

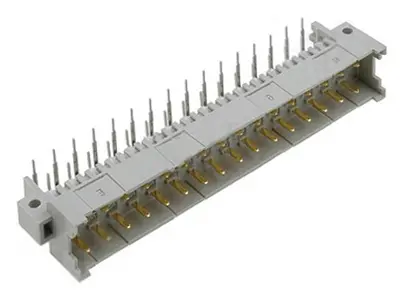

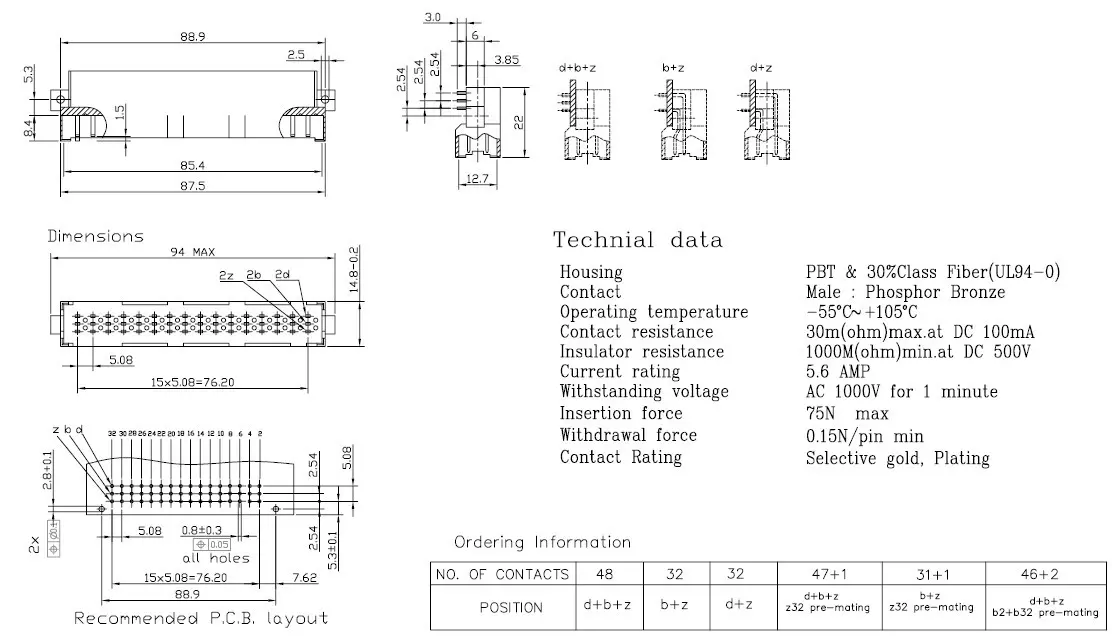

DIN41612 Connector With F Type
Order Information:
KLS1-F48-3348-MR
F48-3X16Pin 3 row Short Type
Part Number: 3348 / 3232A/ 3232B / 3347+1 / 3231+1
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC
