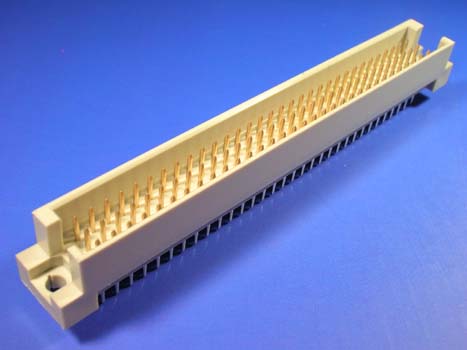

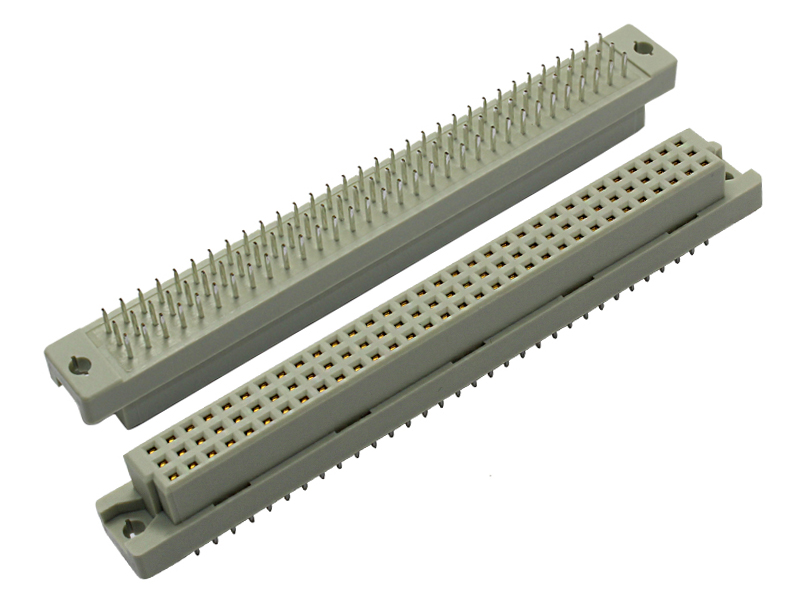

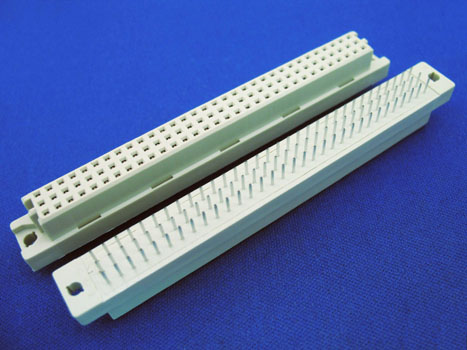

DIN41612 Connector With 3×32 Pin C Type

Order Information
KLS1-D3-3396-MS
D3-3X32Pin 3 row Long Type
Part Number: 3396 / 3264 / 3348 / 3232
M-Male  F-Female

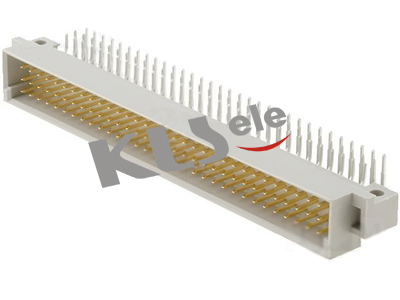

S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ  Max.  Insulator
Insulation Resistance: 1000 MΩ  Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

KLS1-D3.pdf
