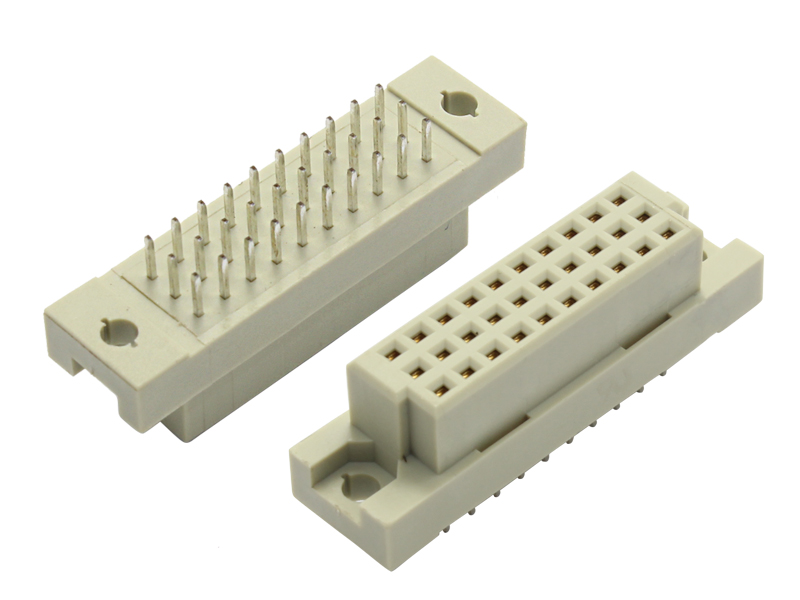

DIN41612 Connector With 3×10 Pin C Type
Order Information
KLS1-D3Q-3330-MS
D3Q-3X10Pin 3 row Short Type

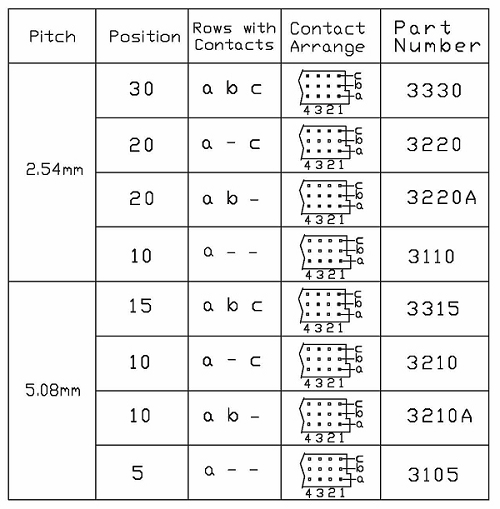

Part Number: 3330 / 3315 / 3220 / 3210/3110
M-Male F-Female

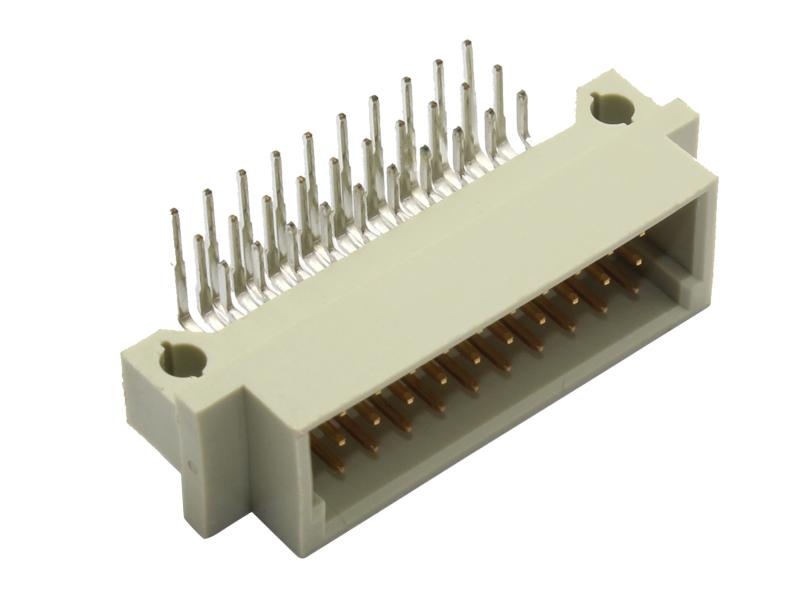

S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

KLS1-D3Q.pdf
