DIN41612 Connector (B Type 2x32Pin)

  • Model: KLS1-D2
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

DIN41612 Connector With 2×32 Pin B Type
Order Information

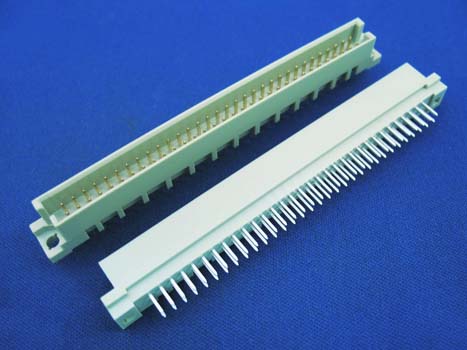

KLS1-D2-2264-MS
D2-2X32PinTwo row Long Type
Part Number: 2264 / 2132 / 2232 / 2116

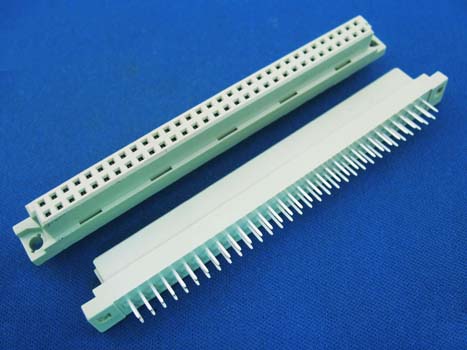

M-Male F-Female

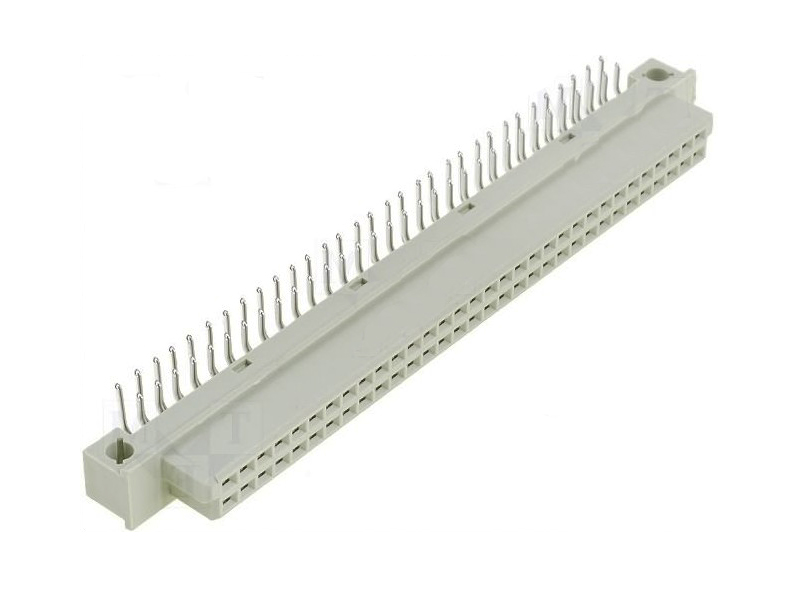

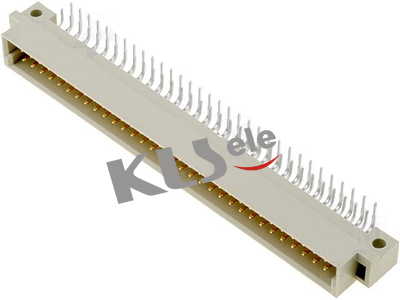

S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC
