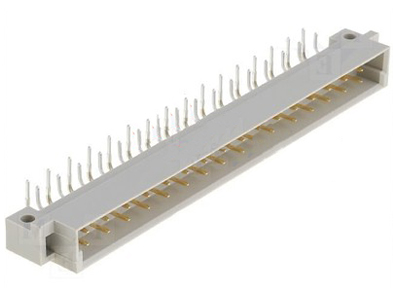

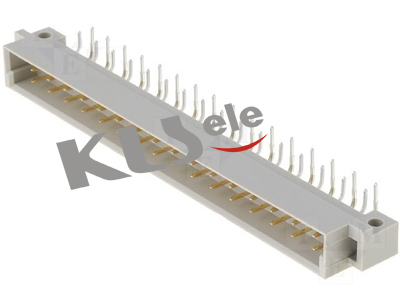

DIN41612 Connector With 2×24 Pin B ype

Order Information
KLS1-D2Z-2244-MS
D2Z-2x24Pin Two row Short Type
Part Number: 2248 / 2224 / 2124/ 2112
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Maerial:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC
