Din Socket

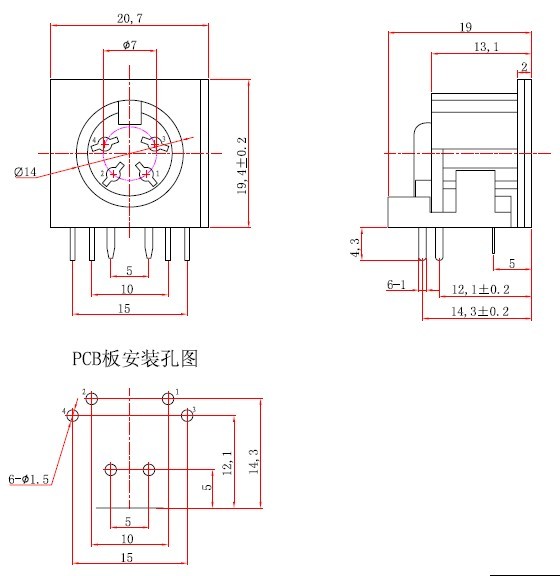

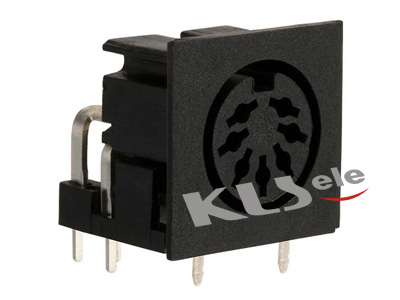

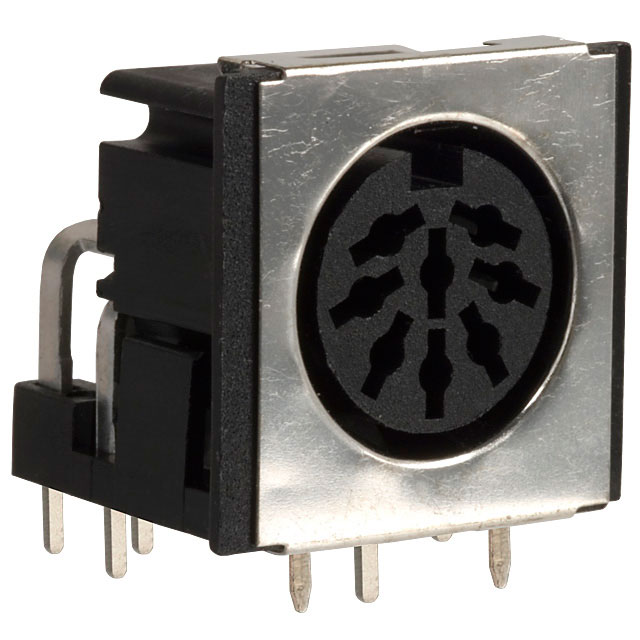

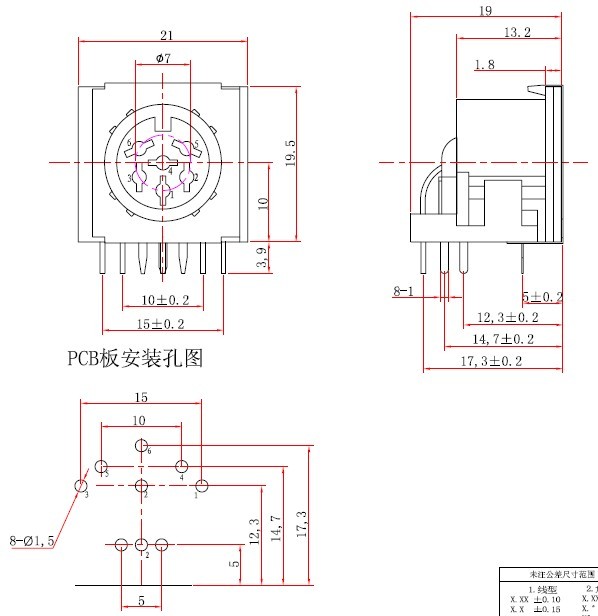

  • Model: KLS1-293A-5.0 / KLS1-293L-5.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Din Socket

How to order Example:
KLS1-293L-5.0-3-B
293A=Without Phosphor Bronze Cover 293L=With steel Phosphor Bronze Cover
Pitch:5.0mm
3-3PIN Or-4 Pin,5 Pin,6 Pin,7 Pin,8 Pin
B=Black

MATERAL
Insulator:PBT UL 94V-0 or PPS
Shell:Brass,Nickel / Tin Plated or Tin Plated
Contact:Phosphor Bronze,Gold /Tin plated
ENVIRONMENTAL
Operating Temperature:-55 C ~ + 105 C
ELECTRICAL
Contact current Rating:1 A 100V AC
Dielectric Withstanding:250V AC 1 min.
Insulation Resistance:5000M OHM min AT 500V DC
CONTACT RESISTANCE:30m ohm Max
