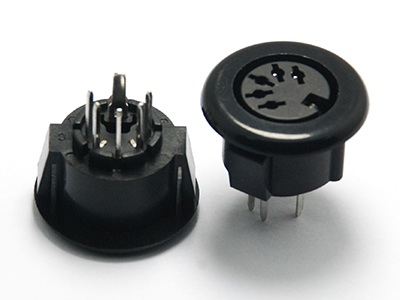

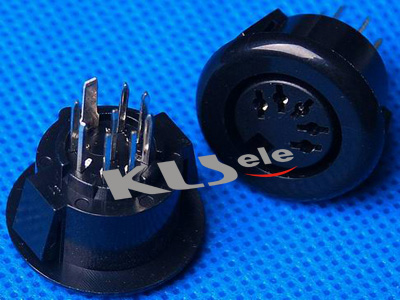

Din Socket Connector :

How to order Example:
KLS1-159A-5-B
Type:159A or 159B
5-5 Pin Or-3 Pin,4 Pin,6 Pin,7 Pin,8 Pin
B-Black

MATERAL
Insulator:PBT UL 94V-0
Shell:Brass,Nickel / Tin Plated or Tin Plated
Contact:Phosphor Bronze,Gold /Tin plated
ENVIRONMENTAL
Operating Temperature:-55 C ~ + 105 C
ELECTRICAL
Contact current Rating:1 A 100V AC
Dielectric Withstanding:250V AC 1 min.
Insulation Resistance:5000M OHM min AT 500V DC
CONTACT RESISTANCE:30m ohm Max.

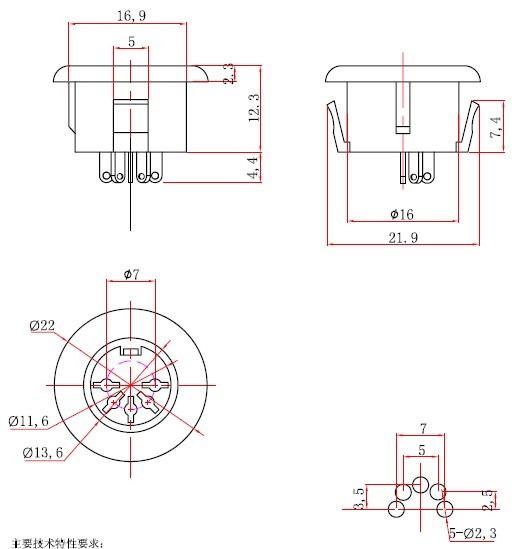

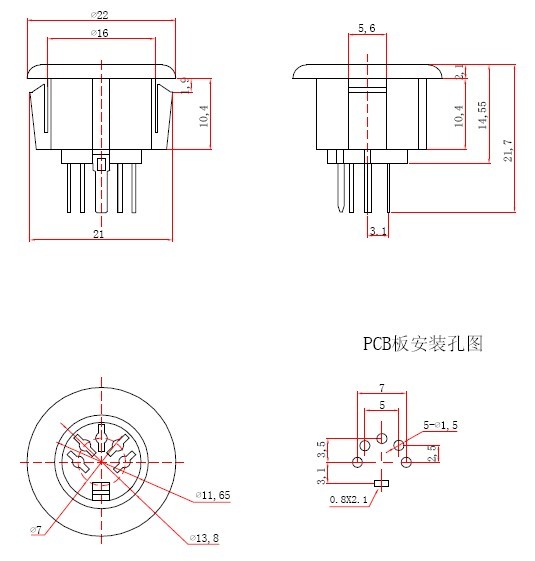

KLS1-159A & KLS1-159B.pdf
