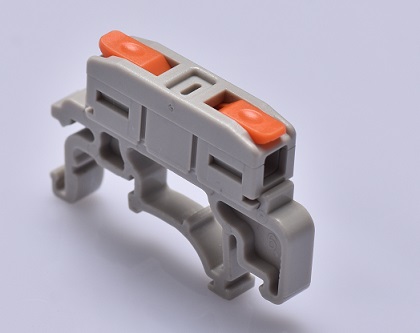

Din Rail Wire Splice Connectors,28~13AWG,01 pins

  • Model: KLS2-L239D
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Din Rail Wire Splice Connectors,28~13AWG,01 pins

Order information:
KLS2-L239D-01-E
01-No.of 01pins
E-Orange press handle

Material:
Housing:PA66/PC,UL94V-0(2)
Contact:Brass,Tin plated
Spring clasp:301 Imported stainless steel
Applicable wires:13~28AWG

Electrical Characteristics:
Current rating:32A
Voltage rating:300V
Temperature range:-25°C~+ 95°C
Insulator Resistance:1000MΩ Min
Contact Resistance:0.015mΩ Max
Dimensional Be Smaller 5 Tolerance ±0.05mm
