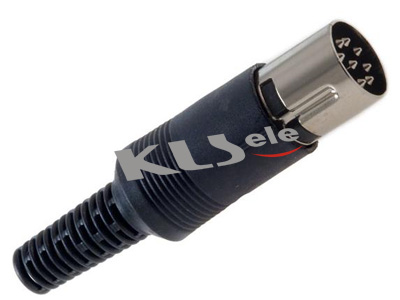

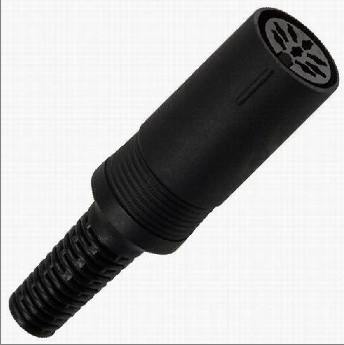

Din Plug Connector:

How to order Example:
KLS1-295-M-7-B
M-MALE F-FEMALE
7=7 PIN Or 3PIN 4PIN 5PIN 6PIN 8PIN
B=BLACK

MATERIAL:
COVER : PE 2L
SHELL : ABS
METAL SHIELD : BRASS NICKEL PLATED
HOUSING : NYLON66 GF
CONTACT: BRASS SILVER PLATED
SPECIFICATIONS:
RATING : 100V AC 1A MAX OR 12V DC 2A MAX.
INSULATION RESISTANCE : 50M OHM MIN AT 500V DC.
DIELECTRIC STRENGTH : 500V AC / 1 MINUTE.
