Parameters:

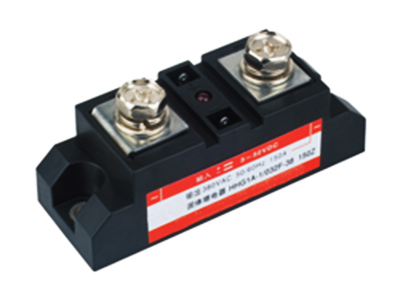

Model: HHG1A
Dimension (mm): 94×34×43
Contrl voltage (Input): 032:3-32VDC
Contrl current: 5-25mA
Turn-on voltage: 3VDC
Turn-off voltage: 1VDC
Load voltage (Output): 38:40-440VAC
Load current: 200、250、300、350、400A
Instant voltage: 38:1200VAC
On-state voltage drop: ＜1.6VAC
On-off time: ≤10mS
Off-state leakage current: ≤10mA
Dielectric strength: ≥2500VAC
Insulation resistance: 500mΩ(500VDC testing)
Ambient temperature: -30～80℃
Radiator (Optional): HH034,HH036,HH037,HH038,HH039,HH063
