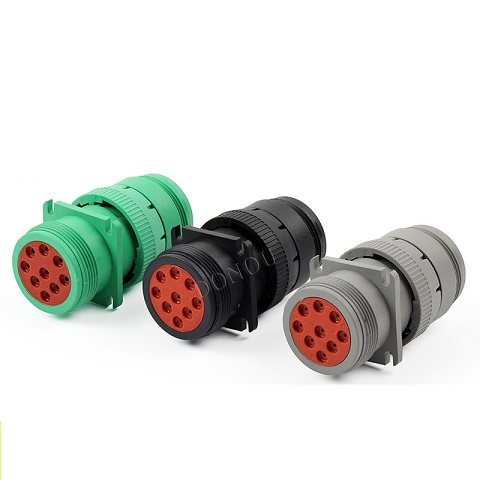

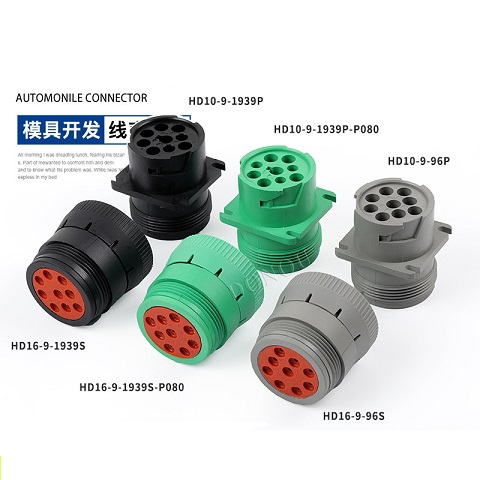

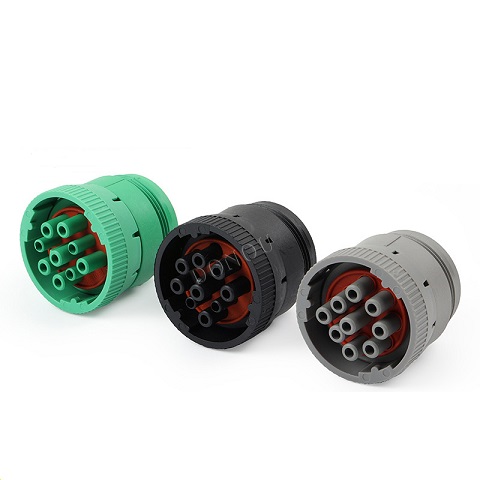

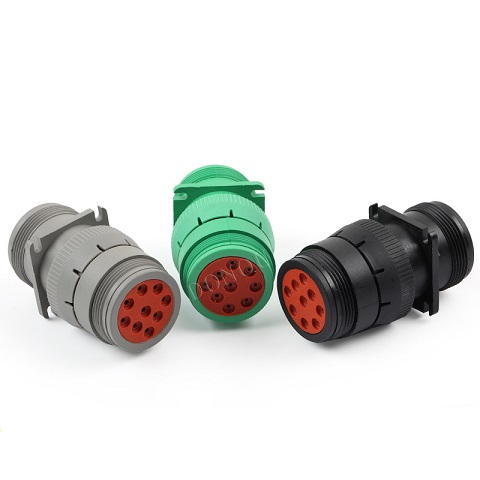

The HD10 is an environmentally sealed, thermoplastic cylindrical connector series and offers arrangements from 3 to 9 cavities. All HD10 connectors are available either in-line or flanged and accept size 12 or 16 contacts, or a combination of size 16 and size 4 contacts. The HD10 Series is heavily used for diagnostic connectors, eliminates problems associated with assembly and maintenance time, and is designed for long service life.

Key benefits

Accepts contact sizes 4 (100 amps), 12 (25amps), and 16 (13 amps)

6-20 AWG

3, 4, 5, 6, and 9 cavity arrangements

In-line, flange, or PCB mount

Circular, thermoplastic housing

Coupling ring for mating
