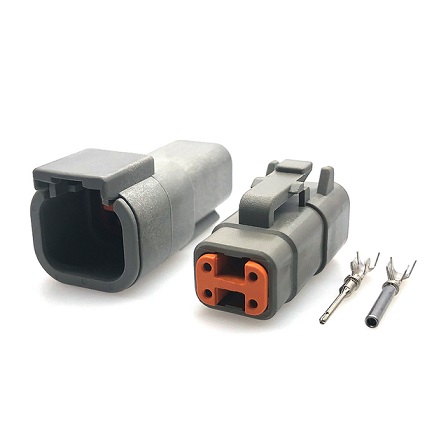

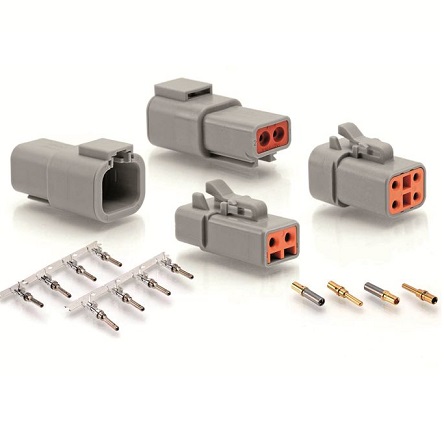

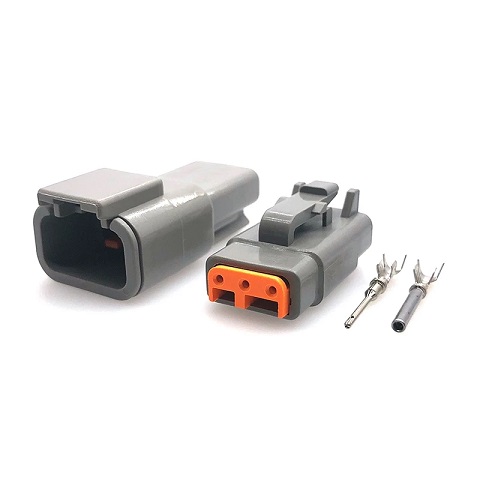

DTM Series connectors are the answer to all of your smaller wire gauge applications. Building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multi- pin, inexpensive connectors. The DTM Series offers the designer the ability to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.

Specifications

Integral connector latch
Rugged thermoplastic housing
Operating at temperatures from -55°C to +125°C continuous at rated current
Insulation resistance: 1000 megohms minimum at 25°C
-55°C to +125°C operating temperature

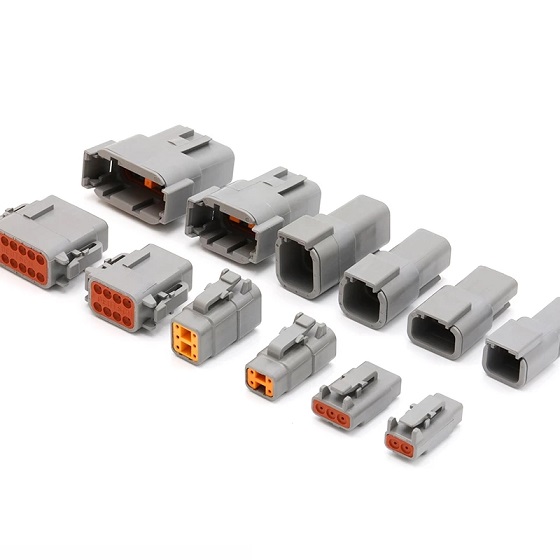

Available in 2, 3, 4, 6, 8 & 12 sizes
Silicone seals
Accepts AWG 16 through 20 wire (1.0mm2 to 0.5mm2)
Crimp contacts with option of gold or nickel, solid or stamped
Current rating: 7.5 Amps all contacts @ 125°C
Hand insertable/removable contacts
1500V, 20G @ 10 to 2000 Hz
Dialectric withstand
Dielectric withstanding voltage: current leakage less than 2ma at 1500 VAC
International Motorsport Approved
