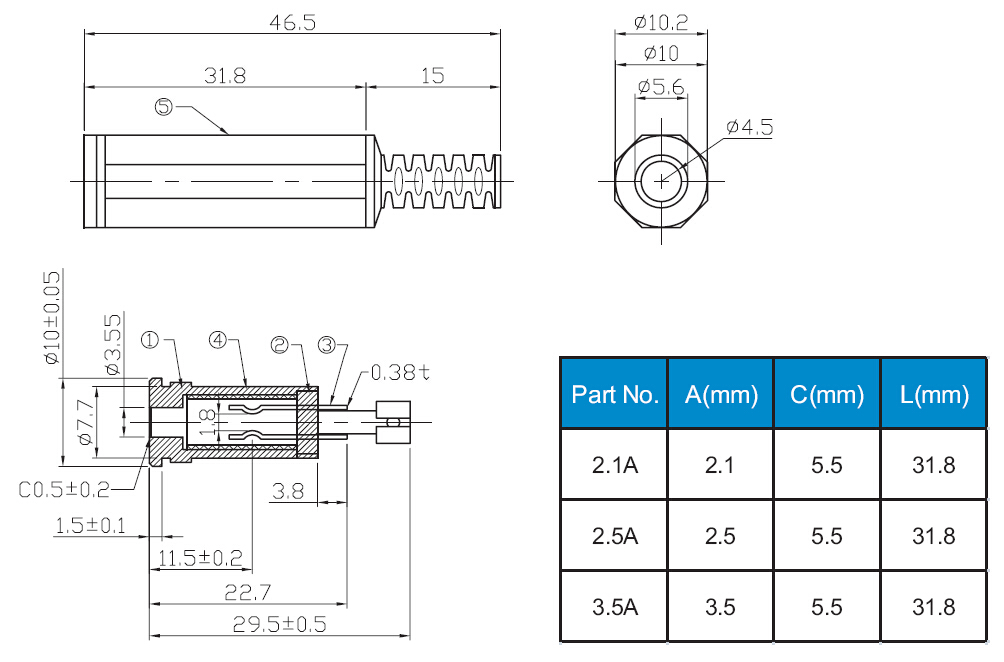

Material:
1 BRASS (NICKEL)
2 ABS (WHITE)
3 P-BRONZE
4 PLASTIC TIBE
5 P-E (BLACK)

Technical parameters:
Rated Load: DC 30V 1.0A
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC500V(50Hz) 1min
Operating Temperature: -30ºC ~ 70ºC
Actuating Force: 3~20N
Life:5000Time

KLS1-DCP-03.pdf
