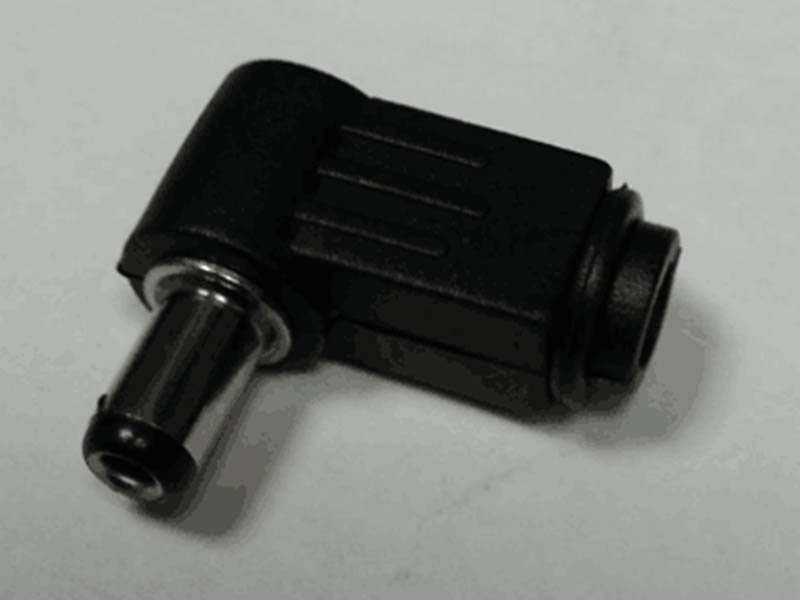

DC Power Plug  (1.0mm / 1.35mm / 2.1mm / 2.5mm)

Technical parameters:
Housing Material: PBT or PA66
Center Pin Material: Brass
Rated Load: DC 30V 1.0A
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC500V(50Hz) 1min
Operating Temperature: -30ºC ~ 70ºC
Actuating Force: 3~20N
Life:5000Time
