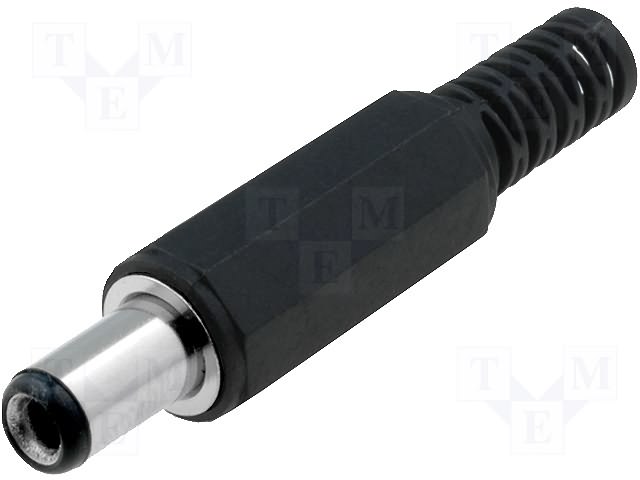

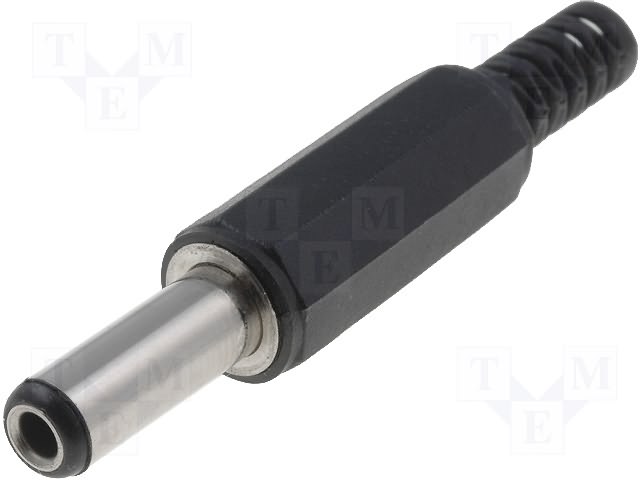

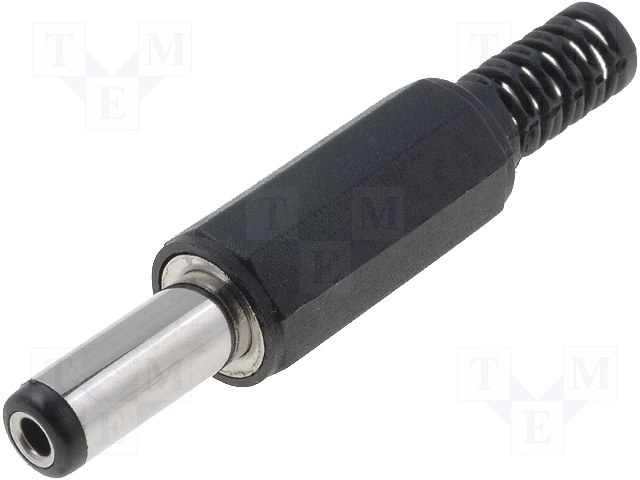

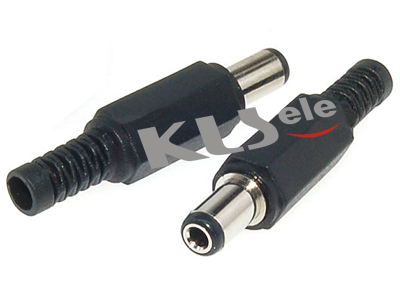

DC Power Plug

Model: KLS1-DCP-02
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Material:
Housing Material: PBT or PA66
Center Pin Material: Brass

Technical parameters:
Rated Load: DC 30V 1.0A
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC500V(50Hz) 1min
Operating Temperature: -30ºC ~ 70ºC
Actuating Force: 3~20N
Life:5000Time

PDF

KLS1-DCP-02.pdf
