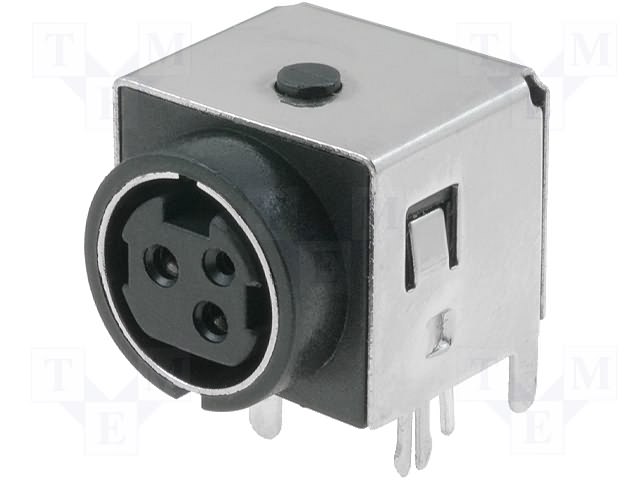

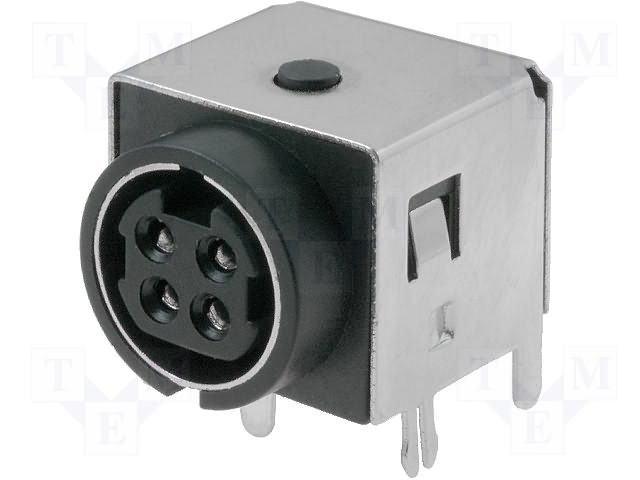

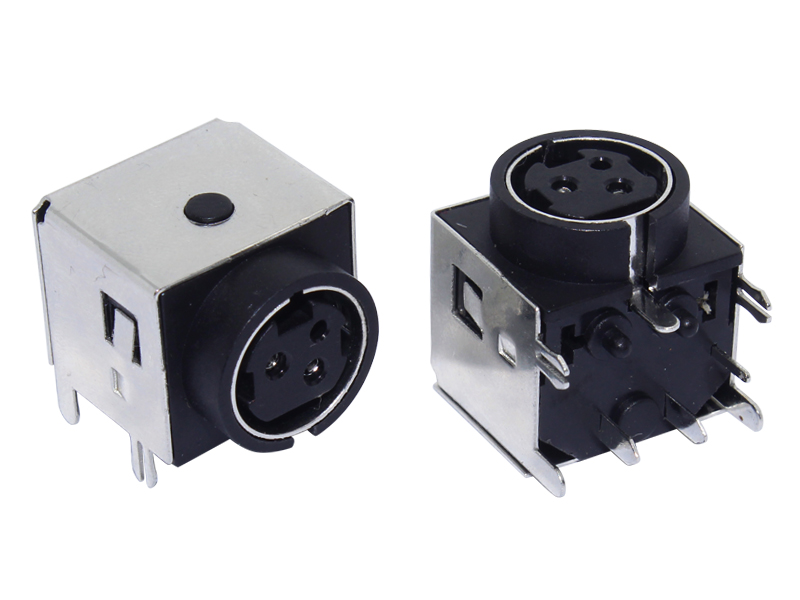

DC Power Jack

Model: KLS1-288L
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Material:
Housing Material: PBT+15%G.F
Contact:Brass, Tin plated
Technical parameters:
Contact Resistance: ≤30mΩ
Insulation Resistance:≥100MΩ
Withstanding Voltage:500V AC（50Hz）1min
Rated load:1&2：20V DC 7.5A MAX； 3：20V DC 1A
Life:≥5000 times
Actuating Force:10～50N
Operating Temperature:-25℃〜70℃

PDF
