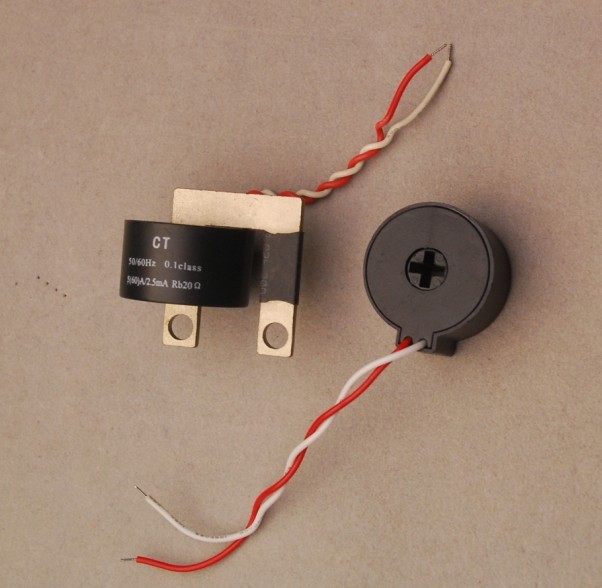

DC Immunity Current Transformers
With copper bracket (Other sizes can be OEM)

Application to single-phase or three-phase electronic type electric energy meter.

Main characteristics:
1. Adopt high magnetic permeability magnetic core,with high precision and good linearity.
2.The range of applicable electric current is wide(1.5A-120A)
3. Primary input and secondary output ensures flexible and diversified forms as well as easy installation.
4. Frequency: 50Hz/60Hz
5. Ambient Temperature: -40℃ — 70℃
6. With a complete range of specifications(See the following table for details),products can be made according to customers’ special requirements.

2.Dimension Data:

ZCT Main Dimension (mm) Wire (mm)
Primary Current
(A)
 0  B (Out Diameter) C (Thickness) Length End Tinned
6A~60A 0 30±1 18 120 5
80A~100A 0 34±1 20 120 5

3. Specifications

CT
Current Rati
 Ratio Load Resistance(Ω) Accuracy Class  Phase error Insulation voltage
Model NO.
Primary Current
(A)

Secondary current( mA )

 Turns  Turns
CT005 1.5(6A) 1.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 2.5(10)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 2.5(15)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 5(20)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 5(30)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 5(40)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 5(50)A 2.5 / 5.0 1:2000 1:4000 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 5(60)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 5(100)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 10(60)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 10(80)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 10(100)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 15(60)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT005 15(100)A 5.0 / 10 1:2000 1:4000 5/10/20Ω 0.1/ 0.2 <15′ 3000V
