DB 2 Row D-SUB Connector,Traditional Solder Type,9P 15P 25P 37P 50p Male Female

  • Model: KLS1-225 & KLS1-225A & KLS1-225D
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

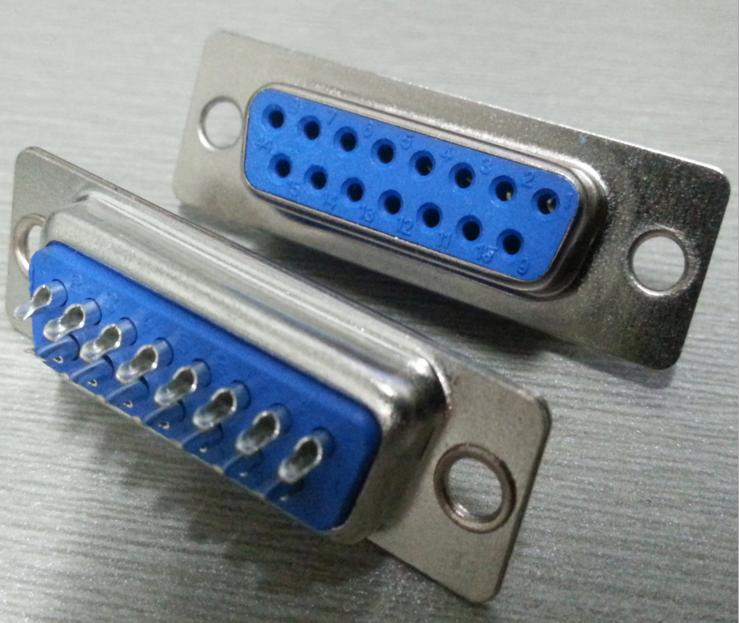

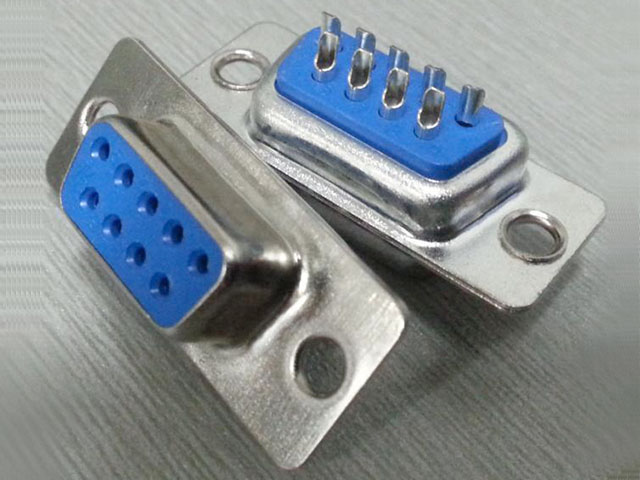

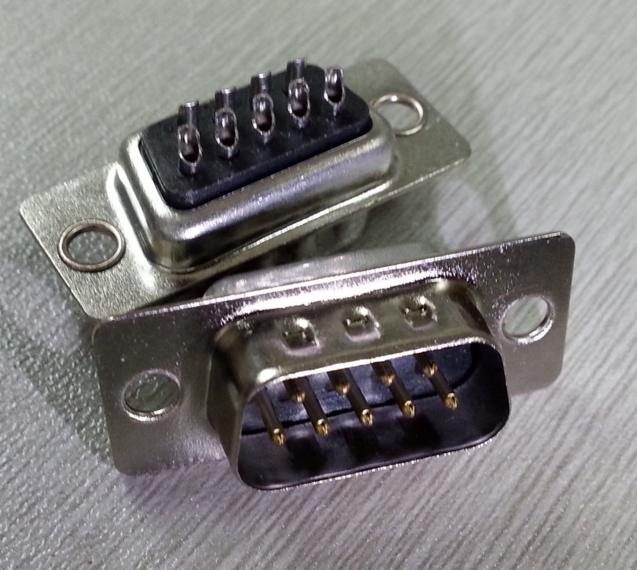

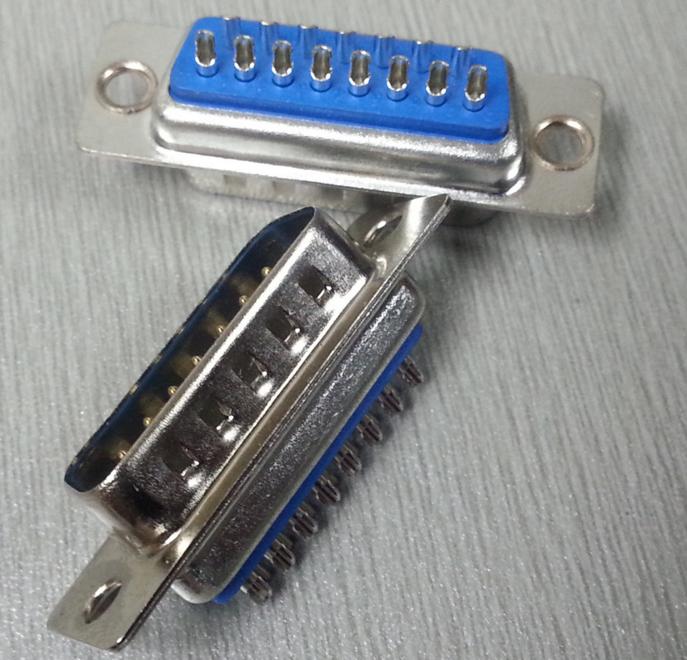

DB 2 Row D-SUB Connector,Traditional Solder Type,9P 15P 25P 37P 50p Male Female

Order Information
KLS1-225-XX-M-L
Type:225,225A,225D
XX-No.of 09,15,25,37,50pins
M-Male    F-Female
L-Blue    B-Black  W-White

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass , Gold Plating on Contact Arer,  Tin on Solder Tail.
Shell: Steel, Front Shell Nickel Plating,  Back Shell Tin Plating
Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
