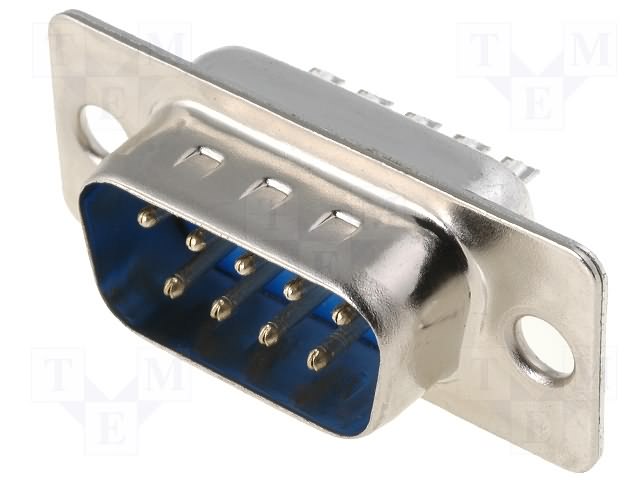

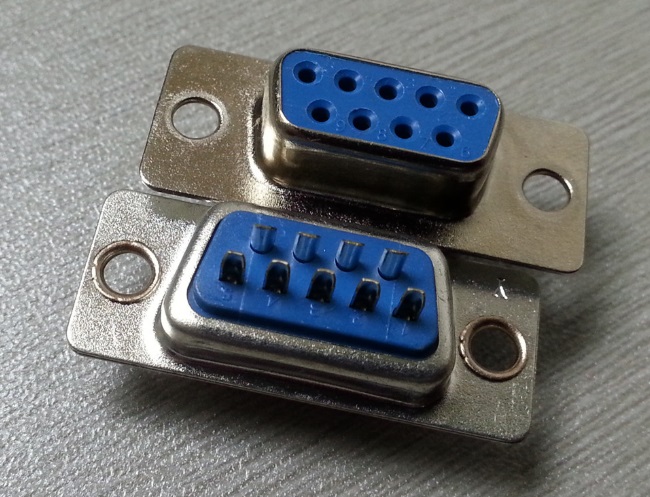

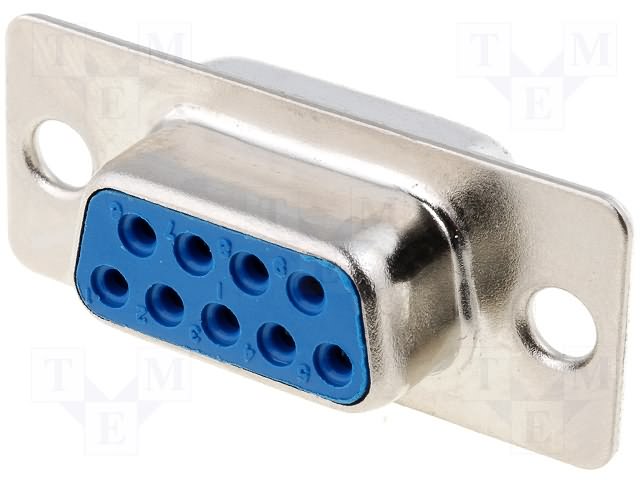

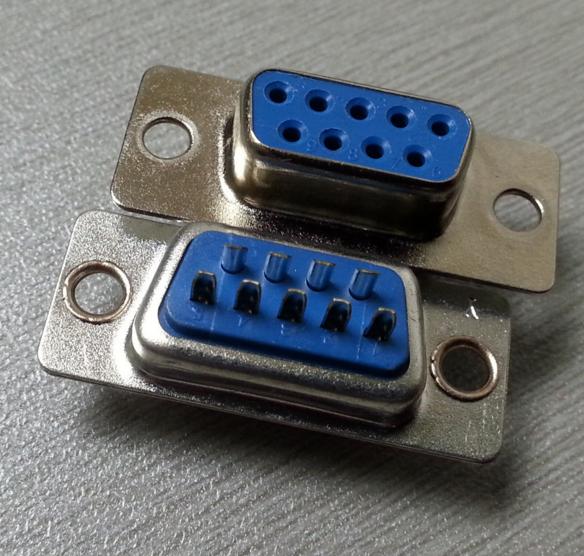

DB 2 Row D-SUB Connector,Simple Solder Type,9P 15P 25P 37P 50p Male Female

Order Information
KLS1-213-XX-M-L
XX-No.of 09,15,25,37,50pins
M-Male    F-Female
L-Blue    B-Black  W-White

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass , Gold Plating on Contact Arer,  Tin on Solder Tail.
Shell: Steel, Front Shell Nickel Plating,  Back Shell Tin Plating
Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
