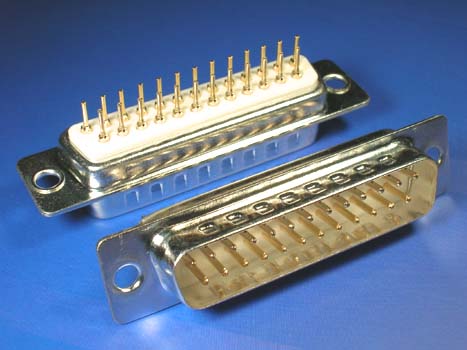

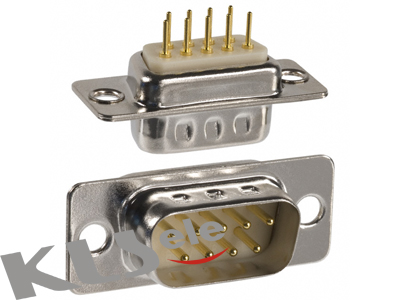

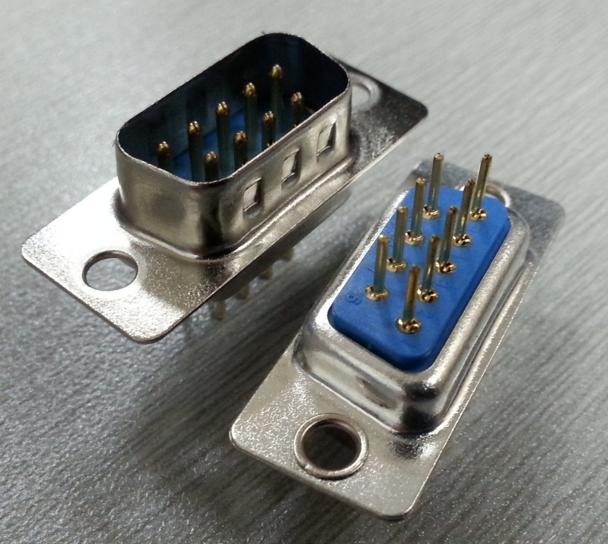

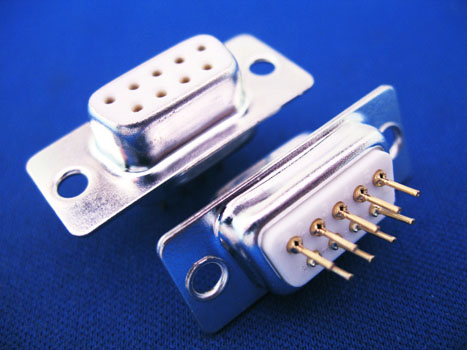

DP 2 Row D-SUB Connector,PCB Type,9 15 25 37 50 pins Male Female
Order Information
KLS1-221-XX-M-L
XX-No.of 09,15,25,37,50pins
M-Male F-Female
L-Blue B-Black W-White
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating or
Gold Plating on Contact Arer,
Tin on Solder Tail.
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -40°C~+105°C
