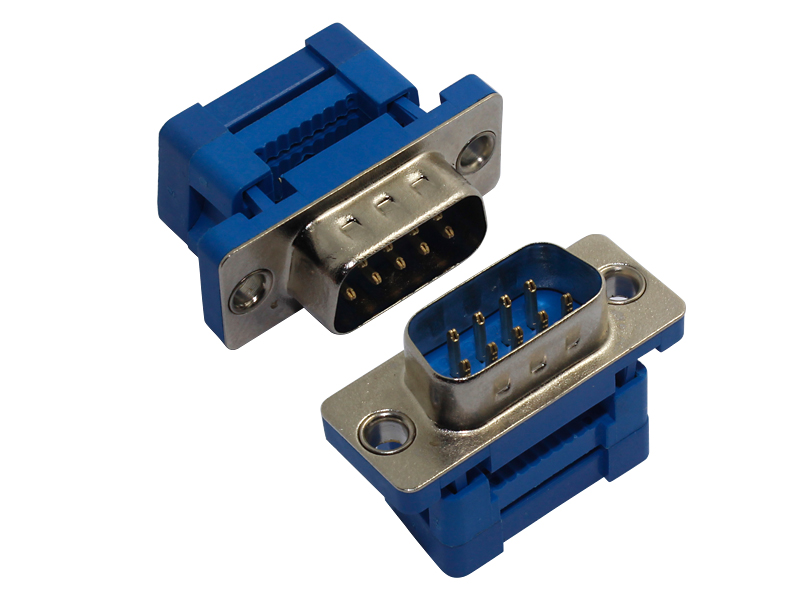

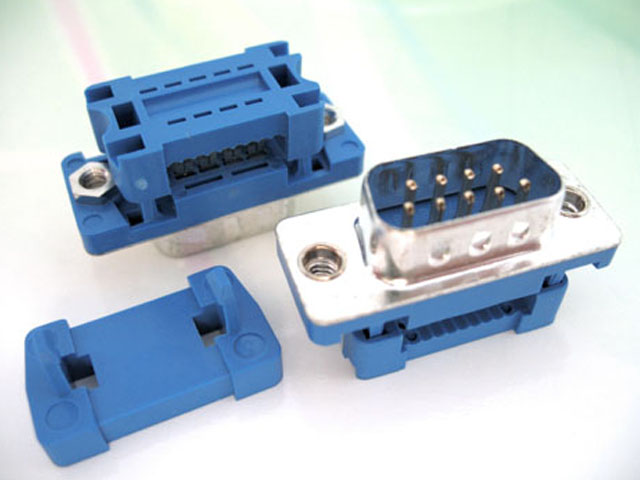

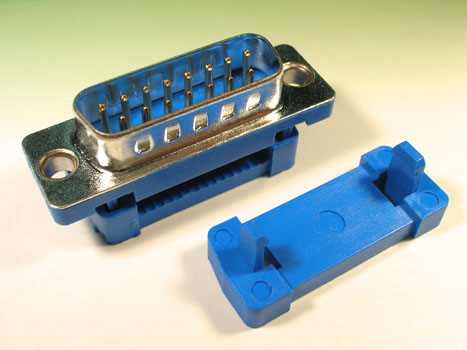

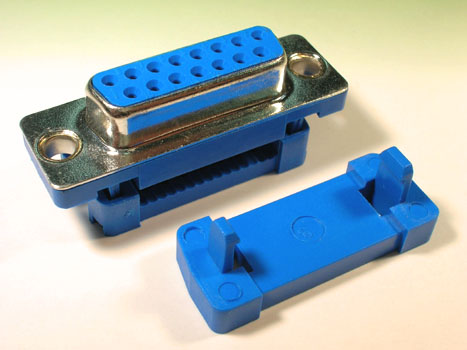

D-SUB Connector  IDC Type 9 15 25 37 pins Male Female

Order Information
KLS1-222-XX-M-L
Type: 222 , 222N
XX-No.of 09,15,25,37pins
M-Male    F-Female
L-Blue      B-Black

Material:

Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating

Electrical Characteristics:

Current Rating:            1 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
