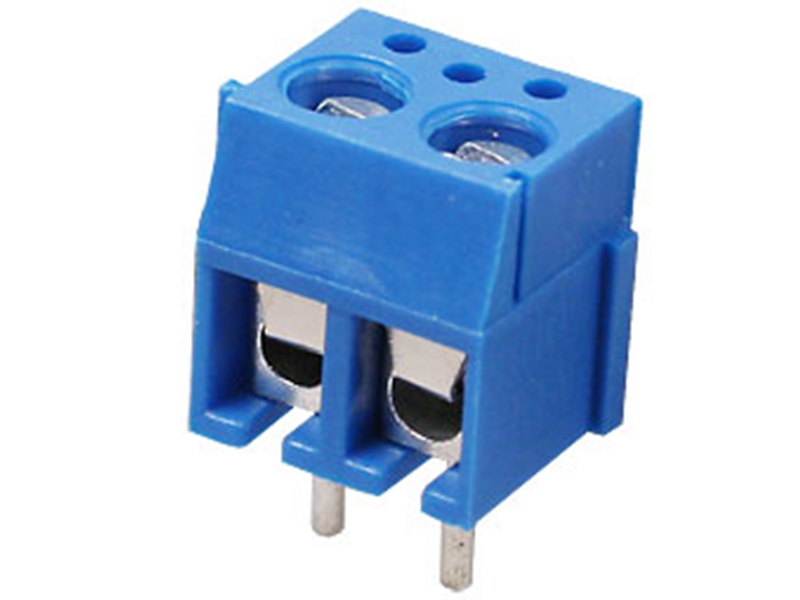

CONN TERM BLK VERT 3.81mm PCB
- Product Details
Electrical:
Rated voltage: 600V
Rated current:40A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/1Min
Wire range:18-10AWG6mm²
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 1.2Nm (10.6lb.in)
Strip length: 5~6mm
