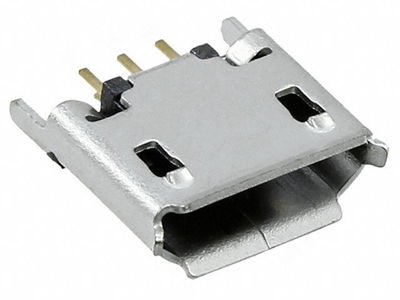

CONN RCPT 5POS MICRO USB Straigth
- Product Details
Material
Housing:LCP,UL94V-0,Black.
Contact:Copper Alloy.Gold
Contact Type: Stamped
Shielding: Stainless Steel Matt Tin Plated.
Electrical:
Current Rating:1.8 A Pin1 & Pin 5
1.0 A Other Pins
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Withstanding Voltage: 100 Vac/Min.
Insulation Resistance:1000MΩ Min.
Operating Temperature: -40°C Up To +85°C
Compliance: Lead Free And Rohs
