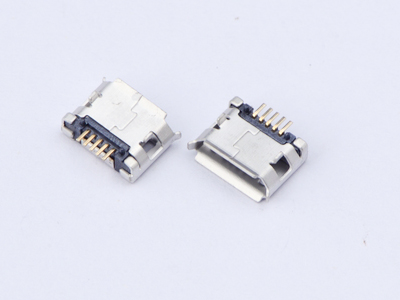

CONN RCPT 5POS MICRO USB SMD
- Product Details
Material
Housing:Hing Temperature
Thermoplastic with g.f,
UL94V-0,Black/White.
Contact:Copper Alloy,t=0.20mm.
Shell:Copper Alloy,t=0.25mm.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
100 V AC for 1 min.
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Total Mating Force:3.57 kgf Max.
Total Unmating Force:1.0 kgf Min.
Temperature Range: -30°C Up To +80°C
