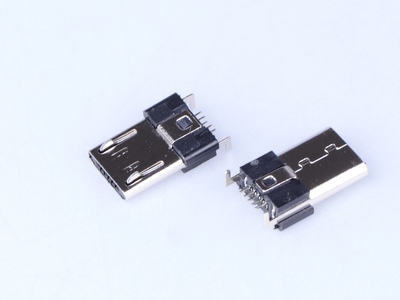

CONN PLUG MICRO USB TYPE B SMD
- Product Details
Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:C2680/C5191.
Shell:Copper/iron/stainless steel.
Finish:
Contact:Plated Gold In Mating Area;
Tin Lead On Solder Talls.
Shell:Tin Lead Plating.
Electrical:
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
50 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
