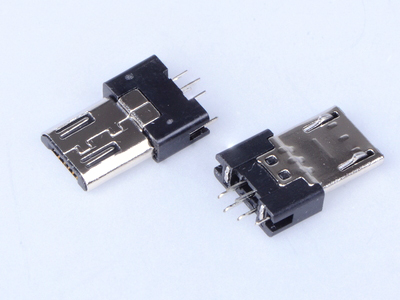

CONN PLUG MICRO USB TYPE B CLIP

  • Model: KLS1-236-5M8
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Housing:Hing Temperature Thermoplastics,
            UL94V-0 LCP,Black.
Contact:C2680/C5191.
Shell: Steel.

Finish:
Contact:Plated Gold In Mating Area;
           Tin Lead On Solder Talls.
Shell:Tin Lead Plating.

Electrical:
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
                     50 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
