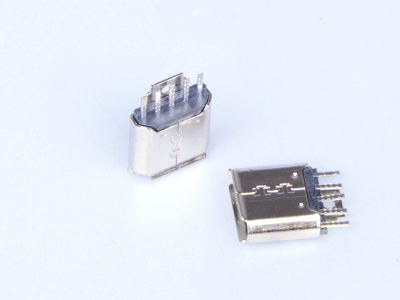

CONN MICRO USB 5P Clip type 1.0mm
- Product Details
Material:
Insulation Material Thermoplastic.
Shell:Copper Alloy/SPCC,T=0.30mm.
Plating:Nickel.
Terminal:Copper Alloy,T=0.25mm.
Plating:Gold/Tin Plated.
Electrical:
Insulation Resistance:1000MΩ Min.
Contact Resistance:30mΩ Max.
Withstanding Voltage:500 V AC.
Mechanical Characteristics:
Insertion Force:3.5kgf Max.
Extraction Force:1.02kgf Min.
