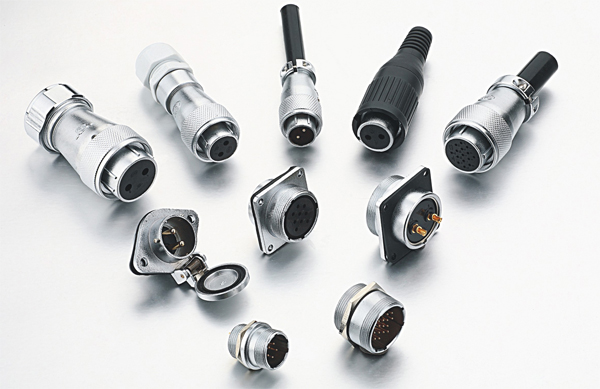

M12 Circular Connector ( Water proof  Ip≥55 )
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.

Order Information:
KLS15-254-M12-2M1
                    (1) (2)(3)
(1) M12:  M12 Shell Size
(2) 2:  2 pins     (2,3,4,5,6,7pins)
(3) F1- Plug Socket        F2-Docking Plug  Pin        F3-Plug Pin
     M1- Receptacle Pin   M2-Receptacle Socket  M3-Flange Receptacle Pin   M4-Flange Receptacle Socket

TYPE	TYPE	Pins	Ordering	Water-proof

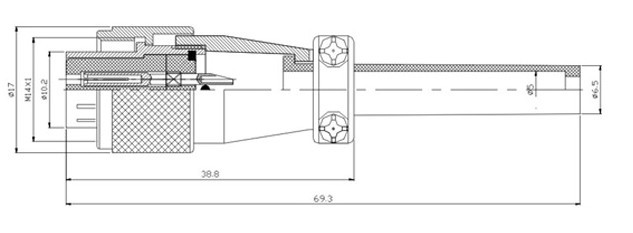

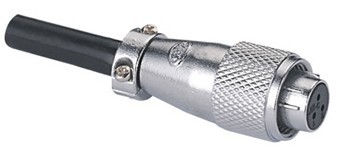

	Plug Socket	2	M12-2F1	IP55
		3	M12-3F1	IP55
		4	M12-4F1	IP55
	Plug Socket	5	M12-5F1	IP55
	Plug Socket	6	M12-6F1	IP55
		7	M12-7F1	IP55
	Docking Plug Pin	2	M12-2F2	IP55
		3	M12-3F2	IP55
		4	M12-4F2	IP55
	Docking Plug Pin	5	M12-5F2	IP55
	Docking Plug Pin	6	M12-6F2	IP55
		7	M12-7F2	IP55

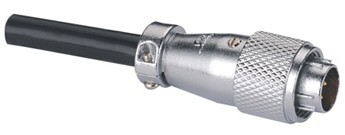

	Plug Pin	2	M12-2F3	IP55
		3	M12-3F3	IP55
		4	M12-4F3	IP55
	Plug Pin	5	M12-5F3	IP55
	Plug Pin	6	M12-6F3	IP55
		7	M12-7F3	IP55

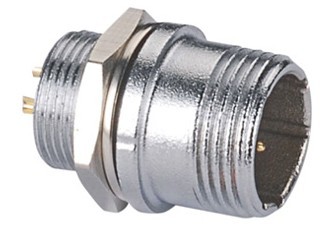

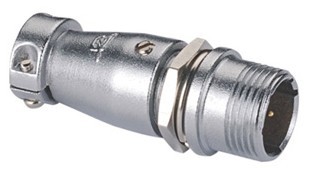

	Receptacle Pin	2	M12-2M1	IP55
		3	M12-3M1	IP55
		4	M12-4M1	IP55
	Receptacle Pin	5	M12-5M1	IP55
	Receptacle Pin	6	M12-6M1	IP55
		7	M12-7M1	IP55

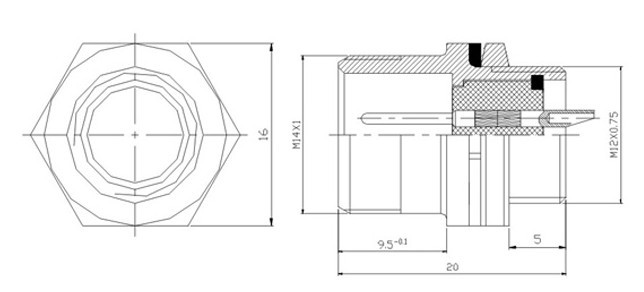

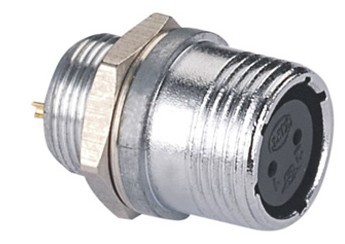

	Receptacle Socket	2	M12-2M2	IP55
		3	M12-3M2	IP55
		4	M12-4M2	IP55
	Receptacle Socket	5	M12-5M2	IP55
	Receptacle Socket	6	M12-6M2	IP55
		7	M12-7M2	IP55

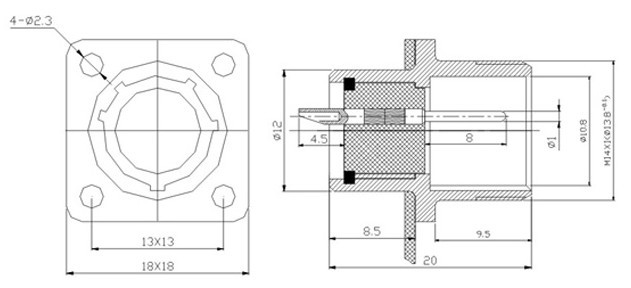

	Flange Receptacle Pin	2	M12-2M3	IP55
		3	M12-3M3	IP55
		4	M12-4M3	IP55
	Flange Receptacle Pin	5	M12-5M3	IP55
	Flange Receptaclet Pin	6	M12-6M3	IP55
		7	M12-7M3	IP55

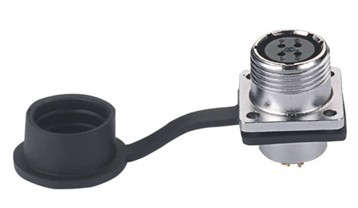

	Flange Receptaclet Socket	2	M12-2M4	IP55
		3	M12-3M4	IP55
		4	M12-4M4	IP55
	Flange Receptaclet Socket	5	M12-5M4	IP55
	Flange Receptaclet Socket	6	M12-6M4	IP55
		7	M12-7M4	IP55
