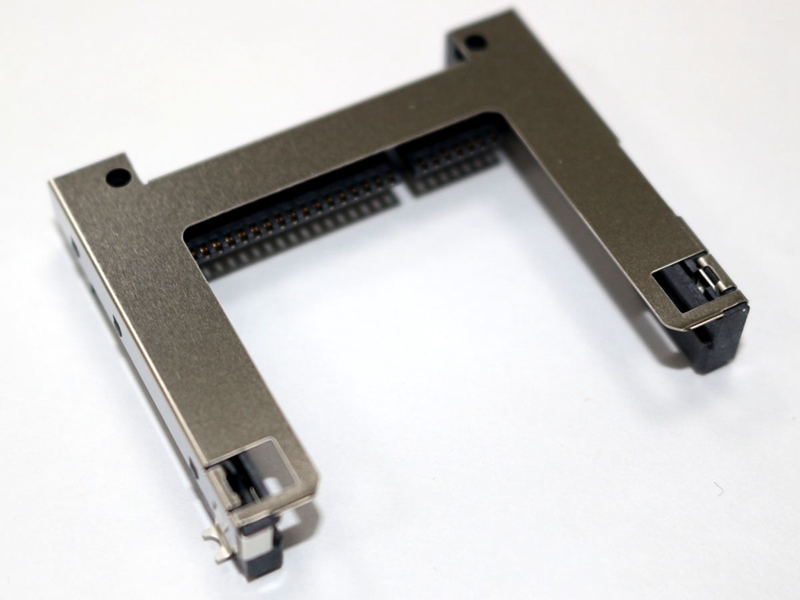

CFast Host Connector,H8.35,PUSH PUSH Type
- Product Details
CFast Host Connector,H8.35,PUSH PUSH Type
Material
Housing:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Slider:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Terminal:Phosphor Bronze,per JIS 5210,0.2T Spring:Piano thread
Metal cover:Stainless steel sheet SUS304 0.2T,
Crank:Stainless rod SUS 304.
Card lock:Stainless steel SUS 304
Plating
Solder zone:100u” matte Tin,50u” min,Nickel underplating over all.
