CFast Host Connector,H6.05,PUSH PUSH Type

  • Model: KLS1-CFA-002A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

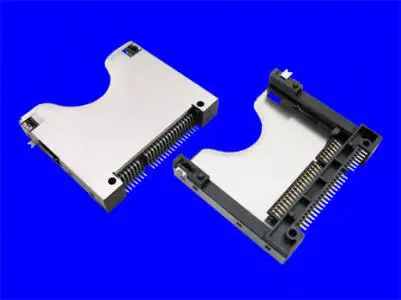

CFast Host Connector,H6.05,PUSH PUSH Type

Material
Housing:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Slider:Engineering plastic,LCP with G.F reinforced,black per,UL 94V-0,rate.
Terminal:Phosphor Bronze,per JIS 5210,0.2T
Spring:Piano thread Metal cover:Stainless steel sheet SUS304 0.2T,
Crank:Stainless rod SUS 304.
Card lock:Stainless steel SUS 304
Plating
Contacts:30u” gold plating in contact area and 100u” min.matte Tin in soldering zone,
over entire contact underplated with 50u” min,Nickel over all.
Solder zone:100u” matte Tin,50u” min,Nickel underplating over all.
