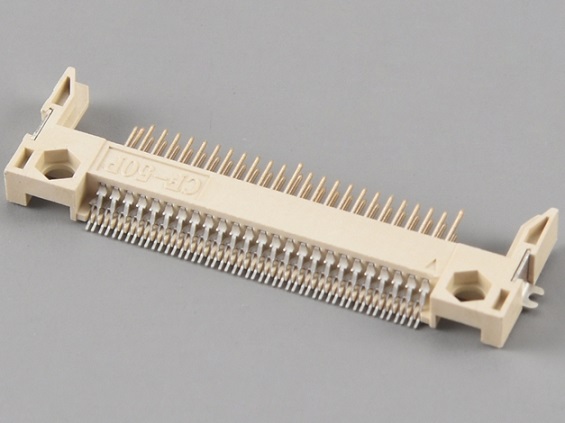

CF card Connector 50P,L13.75mm,H3.9mm
- Product Details
CF card Connector 50P,L13.75mm,H3.9mm
Material:
Housing:Thermoplastic,UL94V-V0.White.
Contact:Copper Alloy 0.40T.Gold Flash
On Contact Area Matte-Tin plated on
solder tail all over Nickel plated.
Fixing:Copper Alloy 0.30T.Tin plated on
solder tail all over Nickel plated.
Electrical:
Current Rating:0.5A AC,DC.
Contact Resistance:40mΩ Max.
Insulation Resistance:1000MΩ Min.
Withstanding Voltage:500V AC/minute
Operating Temperature: -45ºC~+85ºC
