Ceramic terminal blocks
- Product Details

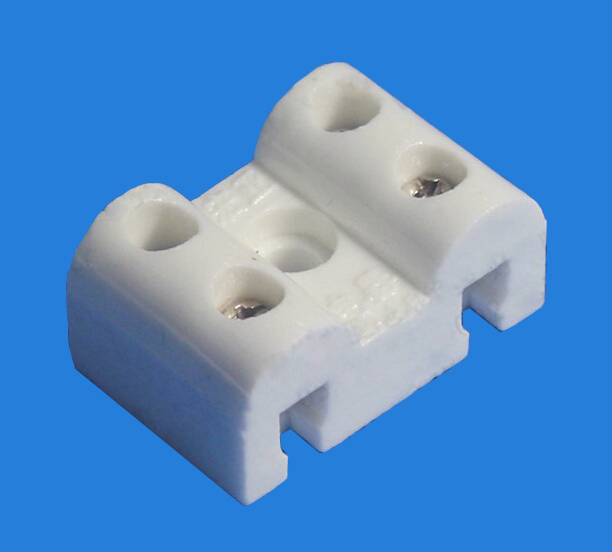

Ceramic terminal blocks
Electrical :
Rated voltage: 110V~750V
Rated current: 10A~50A
Wire range: 1.0~16.0 mm2
Material:
Pin header: Brass
Housing: Ceramic
Mechanical:
Temp. Range: -40ºC~+250ºC

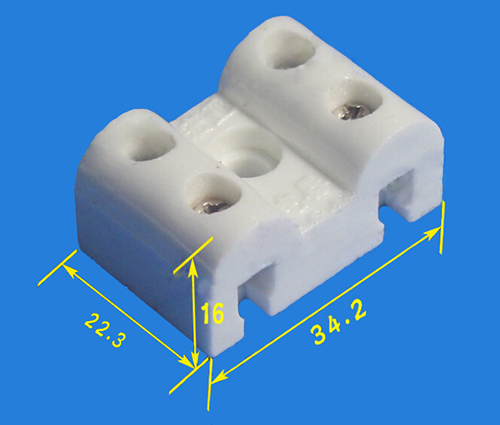

| Model | Texture of material | Length | Width | Height | Rated Current |
| KLS2-CTB7-02P-1 | High frequency porcelain | 34.2 | 22.3 | 16 | 10A |
