Ceramic terminal blocks
- Product Details
Ceramic terminal blocks
Electrical :
Rated voltage: 110V~750V
Rated current: 15A~50A
Wire range: 1.0~16.0 mm2
Material:
Pin header: Brass
Housing: Ceramic
Mechanical:
Temp. Range: -40ºC~+250ºC
| Model | Texture of material | Length | Width | Height | Rated Current |

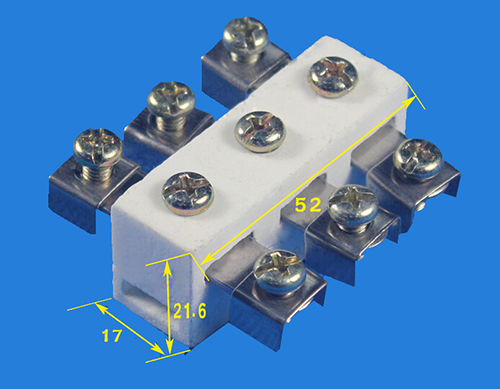

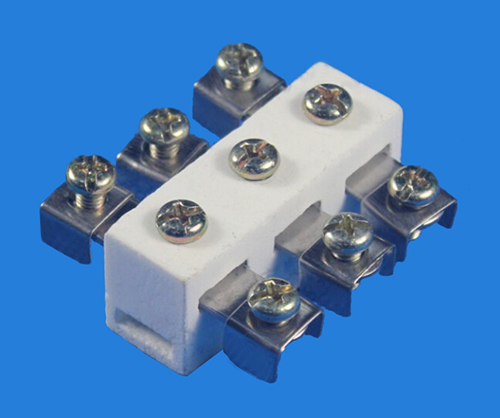

| KLS2-CTB1-03P-1 | High frequency porcelain | 52 | 17 | 21.6 | 35A |

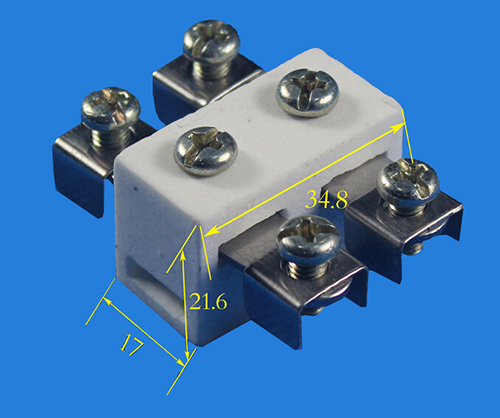

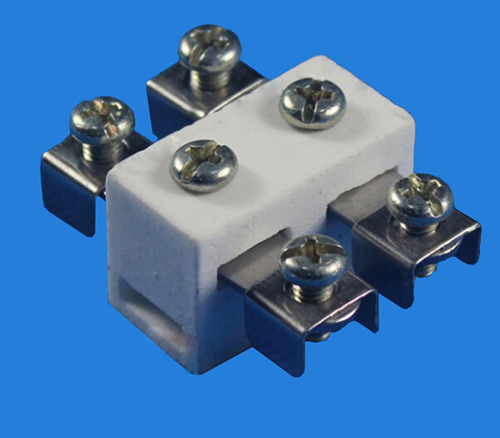

| KLS2-CTB1-02P-1 | High frequency porcelain | 34.8 | 17 | 21.6 | 35A |
