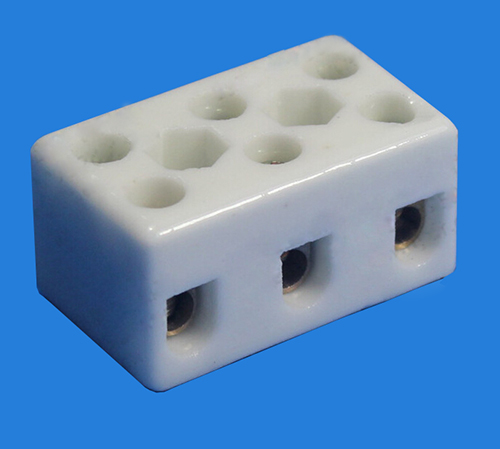

Ceramic terminal blocks
- Product Details
Ceramic terminal blocks
Electrical :
Rated voltage: 110V~750V
Rated current: 5A,10A,20A,25A~50A
Wire range: 1.0~16.0 mm2
Material:
Pin header: Brass
Housing: Ceramic
Mechanical:
Temp. Range: -40ºC~+250ºC

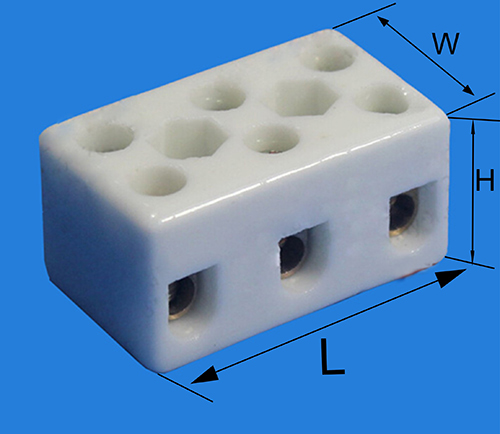

| Model | Texture of material | Length | Width | Height | Rated Current |
| CTB8-H-1 | High frequency porcelain | 32.5 | 21 | 15 | 10A |
| CTB8-H-2 | High frequency porcelain | 38 | 22.5 | 19.7 | 15A |
| CTB8-H-3 | High frequency porcelain | 49 | 28 | 19 | 20A |
| CTB8-H-4 | High frequency porcelain | 92.5 | 23.2 | 19.5 | 35A |
