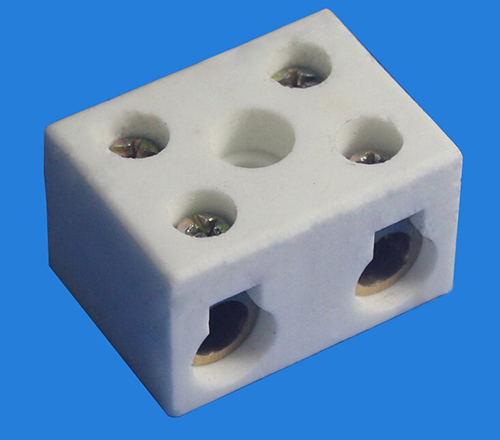

Ceramic terminal blocks
Electrical :
Rated voltage: 110V~750V
Rated current: 5A,10A,20A,25A~50A
Wire range: 1.0~16.0 mm2
Material:
Pin header: Brass
Housing: Ceramic
Mechanical:
Temp. Range: -40ºC~+250ºC

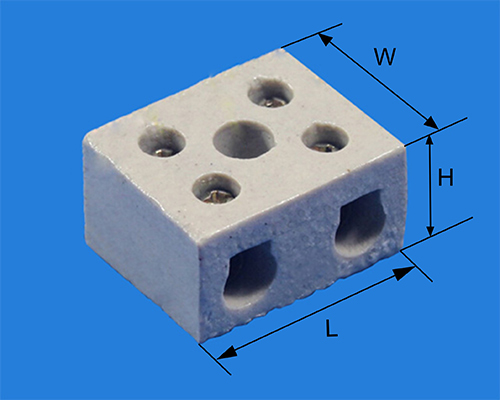

| Model | Texture of material | Length | Width | Height | Rated Current |
| CTB5-T-1 | Talc porcelain | 29 | 21 | 15 | 5A |
| CTB5-T-2 | Talc porcelain | 37 | 30 | 21 | 10A |
| CTB5-H-1 | High frequency porcelain | 21 | 16.7 | 13 | 10A |
| CTB5-H-2 | High frequency porcelain | 22 | 20 | 14 | 10A |
| CTB5-H-3 | High frequency porcelain | 31.5 | 22 | 16 | 10A |
| CTB5-H-4 | High frequency porcelain | 32 | 28.7 | 19.5 | 20A |
| CTB5-H-5 | High frequency porcelain | 32 | 28.7 | 19.5 | 25A |
| CTB5-H-6 | High frequency porcelain | 25.3 | 25 | 20 | 20A |
| CTB5-H-7 | High frequency porcelain | 40 | 32 | 22.5 | 25A |
| CTB5-H-8 | High frequency porcelain | 41 | 30.5 | 26 | 50A |
| CTB5-H-9 | High frequency porcelain | 46 | 36 | 32 | 50A |
