C8 AC Power Socket Solder Tyep

Model: KLS1-AS-222-1
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

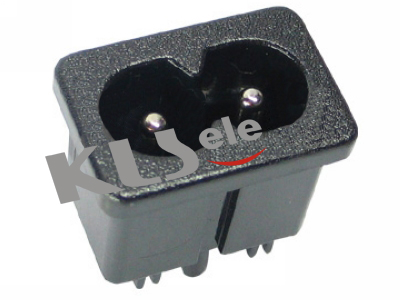

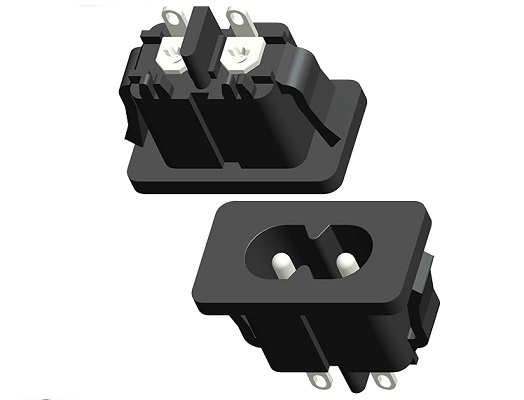

AC Power Socket Connector C8 Solder Type

Electrical Characteristics:
Standard: IEC 60320 C8
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
Ratin: 2.5A 250VAC
Insulator Resistance: 100M Ohm 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC

PDF

KLS1-AS-222-1.pdf
