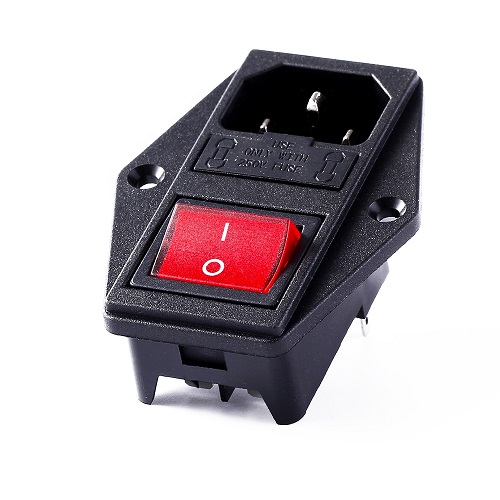

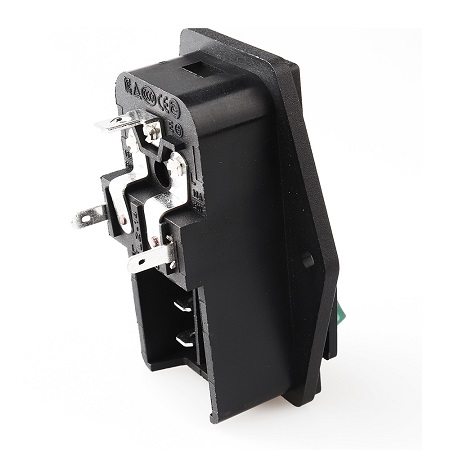

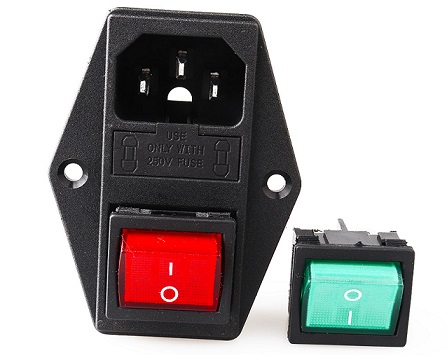

C14 AC power socket+Fuse+Switch
- Product Details
AC Power Sockets With Double fuse
Electrical Characteristics:
Rating:10A 250V AC
Insert and Extract Force:1.36kgf~6.8kgf
Terminal Strength:≥80N
Operating Life:≥5000 cycles
Withstand Voltage:
Between all terminals:2000VAC
(50-60Hz)1Min
terminals to Base:3750V AC (50-60Hz)1Min
Leakage Current:1mA
Insulation Resistance:≥100MΩ 500V DC
