C13 AC Inlet socket Solder Type

  • Model: KLS1-AS-302-1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

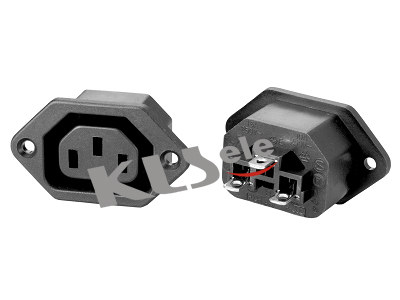

AC Power Socket C13 Solder Type

Electrical Characteristics:
Standard: IEC 60320 C13
Housing:PA66 PC UL94V-0~V-2
Terminal: Brass
VDE Ratin: 10A 250VAC
UL/CSA Ratin: 15A 250VAC
Insulator Resistance: 100MΩ 500V DC / 1 Minute
Dielectric Strength: 2000V AC/1 minute
Operating Temperature: -45ºC~+105ºC
