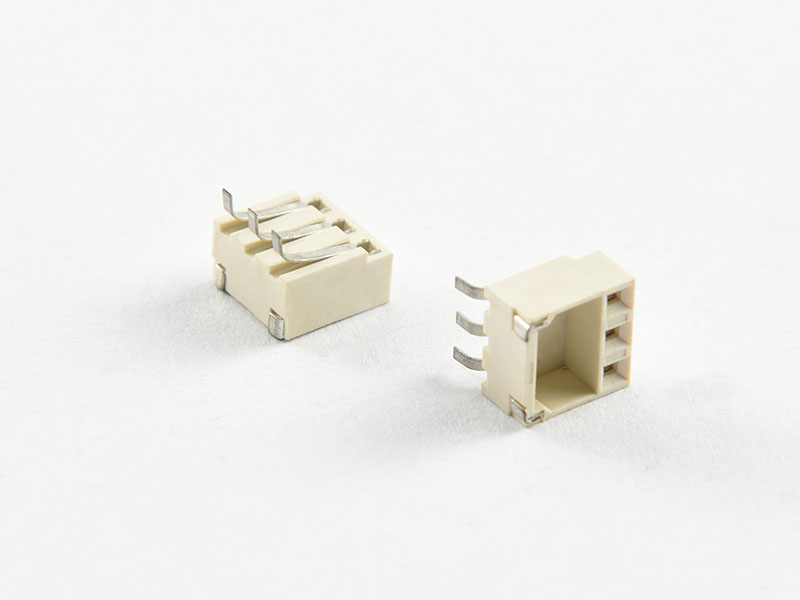

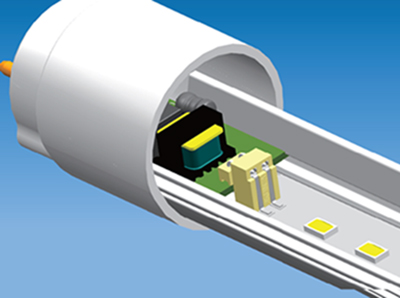

Board to Board Link,for T8 LED Lighting

Model: KLS2-L40
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Insulator:LCP,UL94V-0,Beige
Female Contacts:Phosphor Bronze,Tin-plated
Male Contacts:Brass,Tin-plated
Solder Tab:Brass,Tin-plated

Main Specifications
Poles:02-04P
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:125V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -25 ° C ~ + 105° C

PDF

KLS2-L40A-02P.pdf
