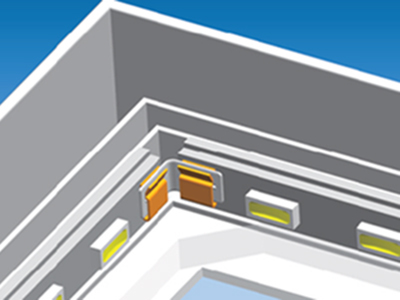

Board to Board Link,for LED Panel Lighting

Model: KLS2-L53
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Contacts:Phosphor Bronze,Tin-plated

Specifications
Poles:01P
Contact Resistance:≤20mΩ
Insulation Resistance:1000MΩ Min.
Rated Voltage:250V AC DC
Rated Current:2.0A AC DC
Withstanding Voltage: 1000VAC/minute
Temperature Range:-40°C~+105°C
