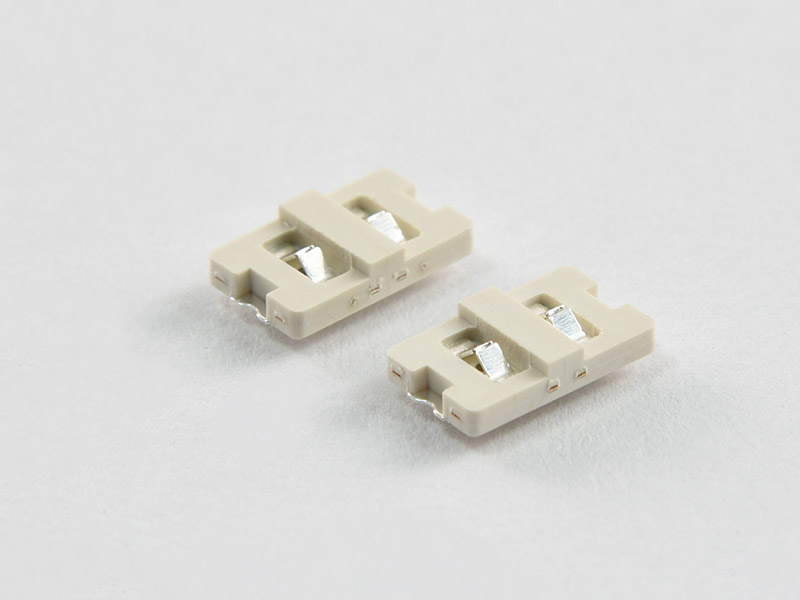

Board to Board Link,for LED Lighting,Pitch 4.0mm

Model: KLS2-L91
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Insulator:LCP,UL94V-0,Beige
Contact:Phosphor Bronze,Sn-plated

Main Specifications
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:125V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -40 ° C ~ + 120° C
